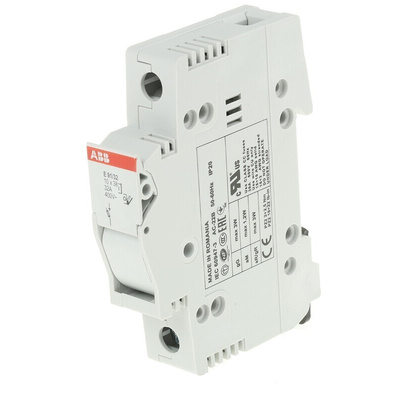

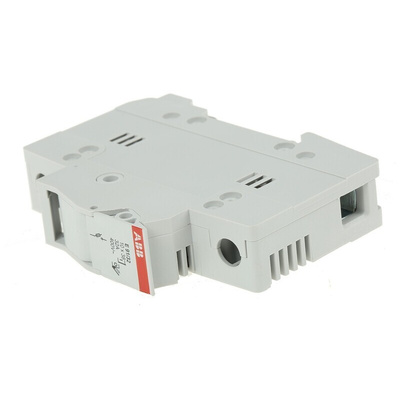

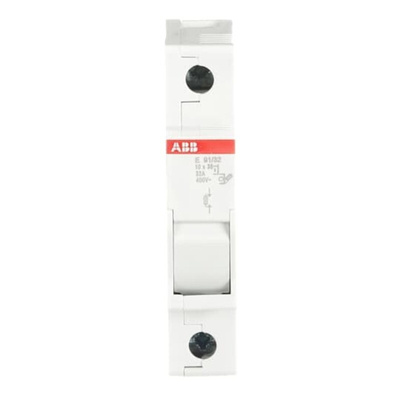

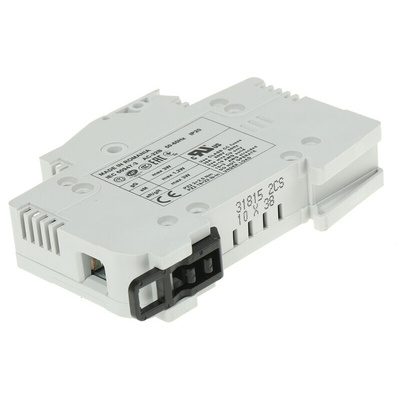

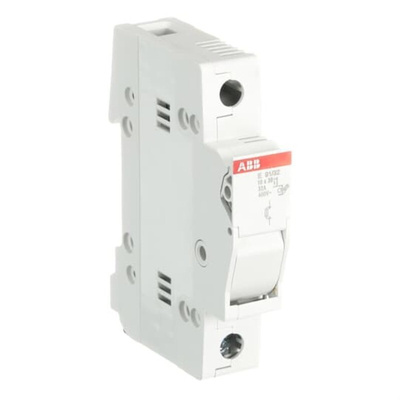

2CSM200923R1801 E 91/32, ABB Fuse Switch Disconnector, SP Pole, 32A Max Current

ABB Fuse Switch Disconnector, Single-Phase, 10 x 38mm Mechanical Fuse - E 90 Series - 2CSM200923R1801

Need to balance power in your automotive and manufacturing processes? Turn to this fuse switch disconnector from ABB. As well as providing overcurrent protection to your machinery, the unit connects and disconnects circuits under load when needed, providing efficiency and reliability. Its case is made of heat-resistant self-extinguishing thermoplastic, giving further protection for your machinery and personnel in the event of an overload. It's compatible with DIN rail mounting, so installation is quick and convenient. Operation and maintenance are made easy by the fuse switch disconnector's single-pole on/off configuration.

Features & Benefits

• 32A maximum current for reliable circuit breaking
• Can be sealed or padlocked for user safety during maintenance
• Contact clips are made from silver-plated copper for good conductivity and reliability
• Fuse disconnector can be sealed or padlocked to help ensure operator safety

Applications

• Manufacturing facilities
• Engineering works
• Industrial automation

Is this fuse switch disconnector compatible with ABB miniature circuit breakers?

Yes, the unit is fully compatible with connecting bars, terminals and caps of S 200 MCB compact circuit breakers (such as 191-9448).
