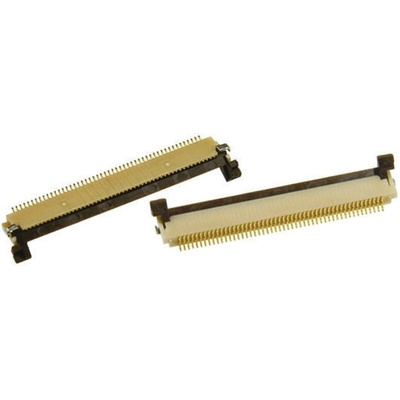

FH12A-28S-0.5SH(55), Hirose, FH12 0.5mm Pitch 28 Way Right Angle Female FPC Connector, ZIF Top Contact, Разъем

Hirose FH12 Series 0.5 mm FPC/FFC Connectors

FH12 series ZIF (zero insertion force) FPC/FFC connectors with a 0.5mm pitch. These FPC connectors feature a one-touch rotating ZIF actuator for easy operation. Once fully closed the actuator produces a tactile click to confirm that mating is complete. FH12 series FPC/FFC connectors with their one-touch ZIF rotating actuator occupy less space on the PCB than versions with slide locking mechanisms enabling high density mounting. These FH12 series FPC/FFC connectors are available with a bottom contact configuration (FH12) or a top contact configuration (FH12A).

Features and Benefits

One-touch rotating ZIF actuator
Tactile click to confirm mating
PCB space saving design
Supports high density mounting
Top and bottom mounting contact configurations

Applications

Suitable for use in a broad range of applications such as mobile phones, GPS, notebook PCs, data terminals, LCD TVs, digital and video cameras and other small hand held devices that connect to an LCD

0.5mm FPC/FFC - Hirose

FH12A Series 0.5mm and 1mm Pitch Connectors For FPC/FFC Catalogue

FH12 Series Datasheet

Datasheet
