RS PRO 1kΩ Carbon Film Resistor 0.25W ±5%, Резистор

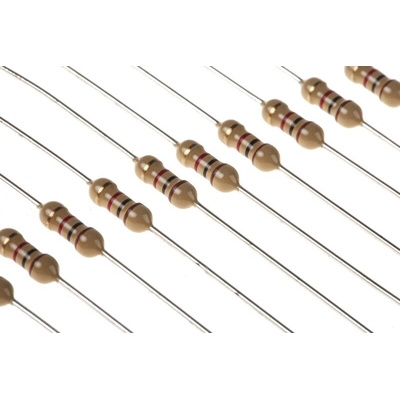

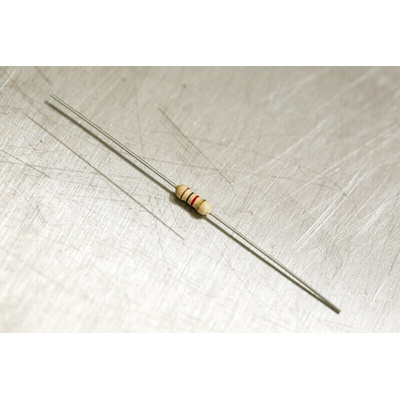

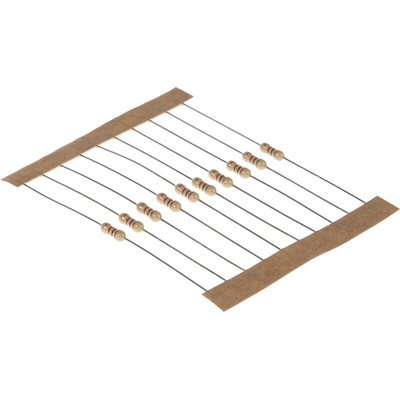

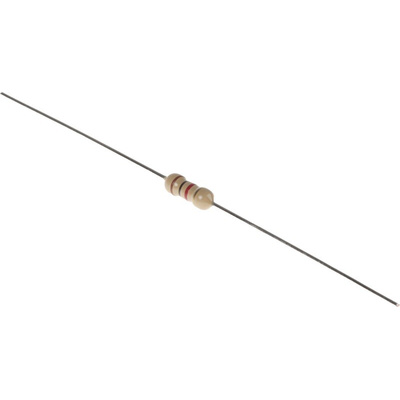

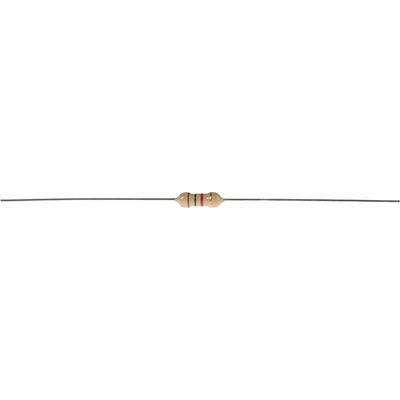

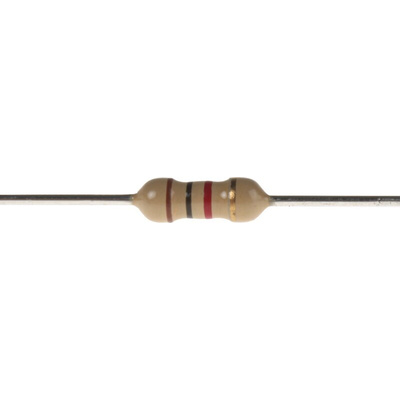

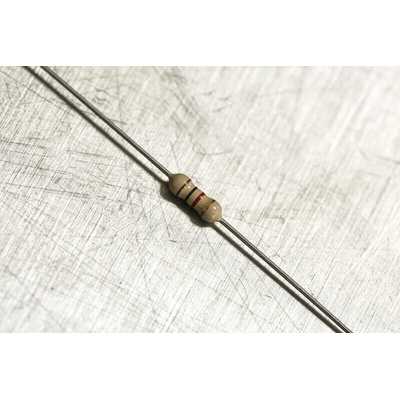

RS PRO 1 kΩ Carbon Film Resistor 0.25 W ±5%

Do you want to adjust the flow of an electric current in a circuit? This RS PRO resistor has a carbon film and ceramic rod construction to keep electrical current contained and safe.
The film is coated in an adhesive resin that makes it highly resistant to chipping, corrosion and rust. The resistor operates at low noise levels and offers excellent stability against changes in moisture levels and load conditions, so you can use it for a variety of applications.
This product is used in automotive, telecommunication and medical equipment to maximise safety and keep devices running efficiently. It's Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• Operating temperature range of -55°C to +155°C


• Temperature coefficient range of -500 ppm/°C to +350 ppm/°C


• Power rating of 0.25 W


• Resistance of 1 kΩ


• Carbon film technology


• Tolerance of ±5%

RS PRO Datasheet
