RS PRO 10kΩ Carbon Film Resistor 0.25W ±5%, Резистор

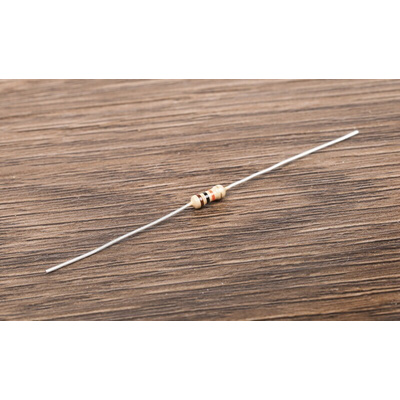

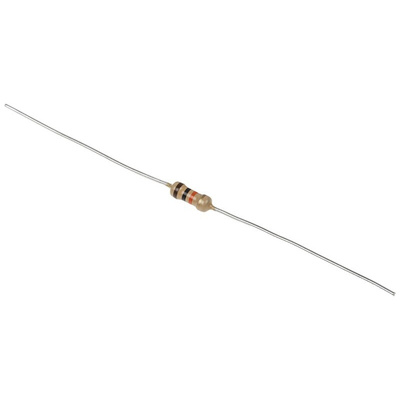

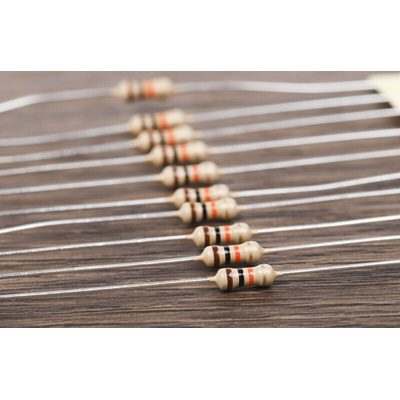

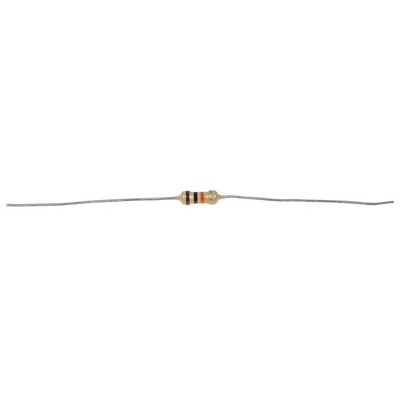

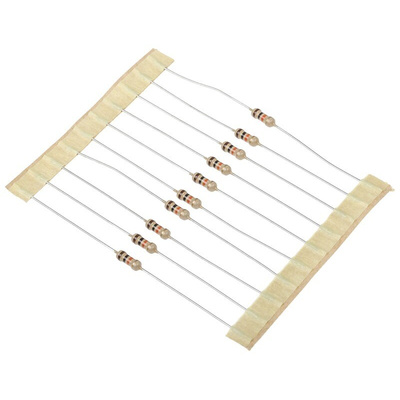

RS PRO 10 kΩ Carbon Film Resistor 0.25 W ±5%

This resistor from RS PRO helps adjust the flow of an electric current in a circuit to enable your device to function effectively. Its ceramic rod and carbon film construction keep the electrical current safe and contained.
The film is also coated in an adhesive resin that keeps it highly resistant to rust, corrosion and chipping. You'll find that the resistor operates at low noise levels and offers excellent stability against changes in load conditions or moisture levels, so it's suitable for a wide range of applications.
This piece has a ±5% level of tolerance, which holds the electrical flow between 9.5 and 10.5 kiloohms (kΩ) and keeps the current from overloading your device. This product is used in automotive, telecommunication and medical equipment to maximise safety and keep your devices operating efficiently.

Features and Benefits

• Maximum operating temperature of +155ºC
• Maximum temperature coefficient of +350 ppm/ºC
• Minimum operating temperature of -55ºC
• Minimum temperature coefficient of -500 ppm/ºC
• Power rating of 0.25 W
• Resistance of 10 kΩ
• Carbon film technology
• Tolerance of ±5%

RS PRO Datasheet
