RS PRO 120Ω Carbon Film Resistor 0.5W ±5%, Резистор

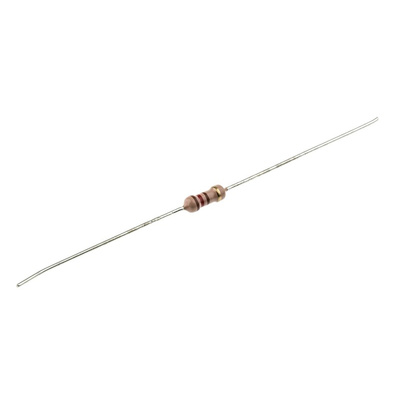

RS PRO 120 Ω Carbon Film Resistor 0.5 W ±5%

This RS PRO resistor controls the flow of an electrical current through a circuit, primarily in high-frequency applications. It's comprised of carbon film which is non-inductive and coated in a ceramic substrate that makes it a good insulator against heat and electricity.
The carbon film is overlaid with an epoxy resin that protects the resistor from deterioration and impact damage. The unit's solder-plated copper leads fit into through-holes on your device for easy installation.
This resistor meets the requirements of International Electrotechnical Commission (IEC) 115 and IEC 115-2 to ensure a high level of resistance stability. Carbon film resistors are useful in regulating current in devices such as transistors, capacitors and digital logic circuits.

Features and Benefits

• Maximum operating temperature of +155ºC
• Maximum temperature coefficient of +350 ppm/ºC
• Minimum operating temperature of -55ºC
• Minimum temperature coefficient of -500 ppm/ºC
• Power rating of 0.5 W
• Resistance of 120 Ω
• Carbon film technology
• Tolerance of ±5%
