NSYCRN43200, Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 400 mm x 300 mm x 200mm, Настенный шкаф

Schneider Electric IP66/IK10 Spacial CRN - CRNG Multi-Purpose Steel Wall Box Enclosure with Cable Gland Plate.

The Schneider Electric Spacial CRN and CRNG steel wall mounting enclosure is a truly universal wall box enclosure has an epoxy-polyester powder finish light grey body. The enclosure also has a polyurethane seal to guarantee water tightness for years. Schneider Electric range offers you CRN models and CRNG models for larger sizes of wall box enclosures.

CRN and CRNG Universal Wall Box Enclosures Features.

• Doors are removable, have a 120° opening, reversible with 2 closing points from 600 mm in height.


• Maximum load of 50 kg/m2.


• Polyurethane seal.


• Smart hinges allow easier removal allowing door reversal.


• Various inserts available.


• Welded studs on the door and wall box enclosure body (earth welded).


• Welded back studs (4), shouldered for mounting 10 mm.


• Epoxy polyester coating, polyurethane seal to guarantee water tightness for years.


• Polyester painted RAL 7035.

• 3 Point lock.


• Double door models available (IP 55).

Spacial CRN / CRNG Wall Box Enclosure Chassis Optionally Available.

• Plain, Silk-screen, micro-perforated, Telequick perforated, Symmetrical, Steel cable gland plate, Insulated cable gland plate (with knockouts), Cable gland plate will receive membranes.

Spacial CRN / CRNG Steel Wall Box Enclosure Typical Applications.

• Industrial automation, Industrial control (plain chassis, micro-perforated chassis, perforated chassis).


• Electrical distribution (modular chassis, steel and insulated – 24 to 234 modules).


• Electronics and Industrial networks (18 inch fixed or swing frame).

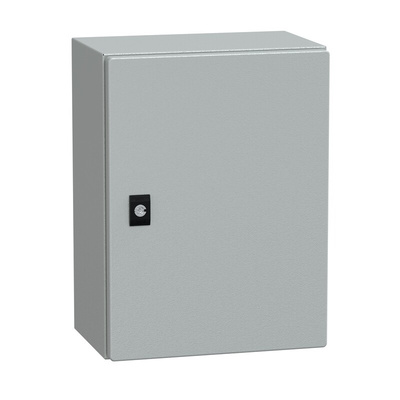

Schneider Electric Spacial CRN Series Wall Box, Steel Body, Grey - NSYCRN43200

This Schneider Electric wall box from the spacial CRN series is a durable and versatile enclosure designed to meet the needs of automation, electronics, Electrical, and mechanical industries. With a sleek steel body and a grey RAL 7035 finish, this IP66 rated cabinet provides outstanding protection for your valuable equipment.

Features & Benefits

• Sturdy steel construction the steel material ensures durability and long lasting performance for your equipment
• Impact resistant design with an IK10 rating, this wall box provides superior protection against impact and damage
• Double bar door lock the cabinet features a double bar lock for enhanced security and peace of mind
• Transparent door option the cabinet offers a transparent door option for visibility and easy monitoring of equipment
• Spacious interior the generous internal dimensions of 400 x 300 x 200 mm provide ample space for your equipment

Applications

• Ideal for use in industrial automation systems for housing electrical components
• Suitable for electronic equipment installations requiring secure protection
• Perfect for mechanical industry applications that demand rugged and reliable enclosures

Can it be used in outdoor environments?

Yes, this Schneider Electric wall box is IP66 rated, making it suitable for outdoor installations.

Will it provide enough space for my equipment?

With dimensions of 400 x 300 x 200 mm, the interior of the enclosure offers ample space for various equipment types.

Is the double bar door lock secure?

Yes, the double bar door lock ensures maximum security for your equipment stored in the cabinet.

Is installation easy?

Yes, the compact enclosure is designed for easy wall-mounting installation, making it convenient for various applications.

Standards

The enclosure has a 3 mm double-bar lock.

NSYCRN43200 Datasheet

Product Environmental Profile

Instruction Sheet - NSYCRN43200
