NSYCRN55250, Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 500 mm x 500 mm x 250mm, Настенный шкаф

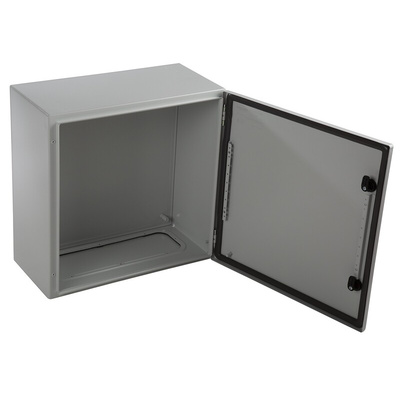

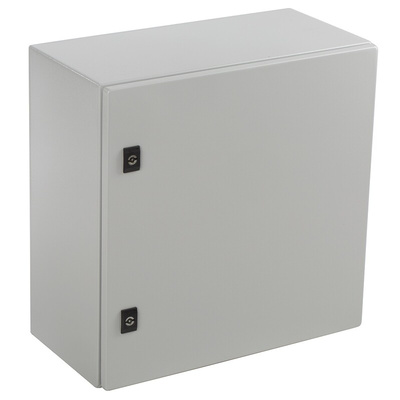

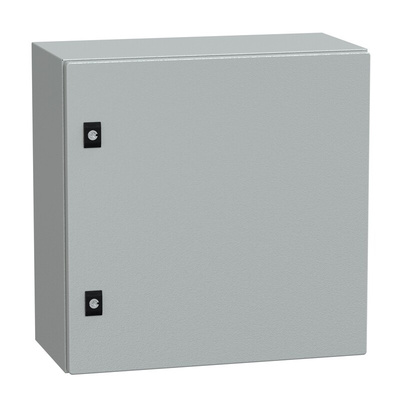

Schneider Electric Wall Box, Steel Body, Double-Bar Lock - Spacial CRN Series - NSYCRN55250

Need to keep electrical equipment safely under lock and key? Choose this wall box from Schneider Electric. It has a 3mm double-bar lock for extra security, helping you close the door on property damage. An IK10 rating indicates it takes hits of up to 20 joules on the chin without suffering damage. For efficient working, the box has a built-in cable gland plate that lets you wire electrical elements in a flash and get plugged into your task straight away.

• Strong steel body for enhanced protection
• IP66 rating, so it's dust-right and resistant to high-pressure water jets from any direction
• Epoxy-polyester powder finish for durability and resistance to chemical damage
• 120° hinged door opening for easy access to electrical elements

Applications

• Electrical distribution
• Automation and control networks
• Non-clean industrial environments

NSYCRN55250 has external dimensions of 500 x 500 x 200 mm.

How big is this wall box?

This enclosure measures 500 (H) x 500 (W) x 250mm (D) and has a net weight of ±11kg, so it's a heavyweight contender.

What side does the door open on?

The door on this wall box is reversible, so you can configure it to open to the left or right side to suit your setup.

What type of lock does it have?

The enclosure has a 3 mm double-bar lock.

Standards

IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage

NSYCRN55250 Datasheet

Catalogue - Universal Enclosures

Product Environmental Profile
