DATAMAN-48PRO2, Dataman Dataman 48Pro2, Universal Programmer for EEPROM, eMMC, EPROM, Flash, MCU/MPU, NAND Flash, NV Ram, PLD, PROM,

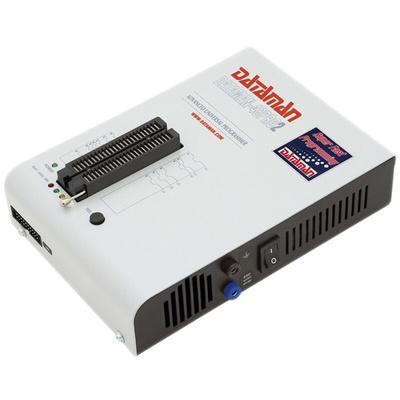

Dataman Universal ISP Programmer

The Dataman universal PC based universal 48-pin programmer has ISP capabilities and USB 2.0/parallel connectivity. It is built to meet the demands of development labs and field engineers for super fast universal programming. Supporting over 88,000 devices with new support being added monthly, it can program without family-specific modules, giving you the freedom to choose the optimal device for your design. Using the in-system programming (ISP) connector, you can program compatible chips in circuit.
Supplied with:
Mains cable, USB cable, ISP cable, Diagnostic POD (ZIF), Diagnostic POD (ISP), anti-dust cover (ZIF), user manual and software (Windows XP/Server 2003/Vista/7/8/10)

Features and Benefits

48-pin universal ZIF socket accepts both 300/600 mil devices
Comprehensive 3-year parts and labour warranty
Easy to use software that is compatible with the latest operating systems including Windows 10
Free lifetime software updates
Full ISP capabilities including JTAG compatibility
High-speed USB 2.0 connectivity
Intelligent pin drivers operate down to 1.8V so you will be ready to program the full range of tomorrow's advanced low-voltage devices
Multiprogramming support allows 1 PC to control up to 4 programmers or as a gang programmer
Up to 70% faster programming of high capacity memory devices

Dataman 48 Pro2 User Manual

Dataman 48 Pro2 Datasheet

ESD Control Selection Guide V1

Dataman-48Pro2 Device List
