DATAMAN-448PRO2, Dataman Dataman 448Pro2, Super Fast Gang ISP Programmer for EEPROM, eMMC, EPROM, FLASH, MCU/MPU, NAND FLASH, NV Ram,

Dataman ISP Programmer

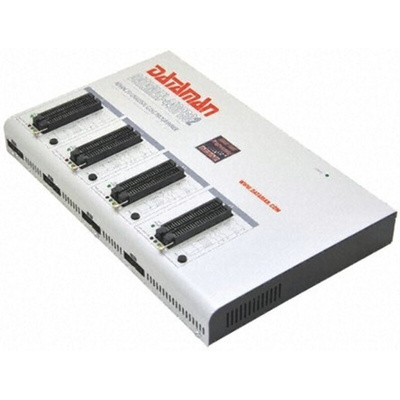

The Dataman ISP super-fast PC based gang programmer has four independent 48-pin ZIF sockets, ISP capabilities and USB 2.0 connectivity. The 448Pro2 is built to meet the demands of super fast high volume production programming with minimal operator effort. Supporting over 88,000 devices with new support being added monthly, the Dataman 448Pro2 can program without the need for family-specific modules, giving you the freedom to choose an optimal device for your design. Independent programming options combine with device insertion tests and a user-friendly interface to give higher programming yields and reduced failure rates.
Supplied with:
Mains cable, USB cable, ISP cable (x4), diagnostic POD for ZIF socket and ISP cable testing, 4 x dust covers, ESD wrist strap, user manual and software

Features and Benefits

Easy to use software compatible with the latest operating systems including Windows 10
Fast programming of high capacity memory device
Free lifetime software updates
Full ISP capabilities including JTAG compatibility
Hi-speed USB 2.0 connectivity
Independent modules supporting concurrent programming
Intelligent pin drivers operate down to 1.8V enabling the latest low voltage devices to be programmed
ZIF socket accepts both 0.3in and 0.6in (7.62mm to 15.24mm) wide DIP devices with up to 48 pins
Up to 70% faster programming of high capacity memory devices

Dataman 448 Pro2 User Manual

Dataman 448 Pro2 Datasheet

ESD Control Selection Guide V1

Dataman-448Pro2 Device List
