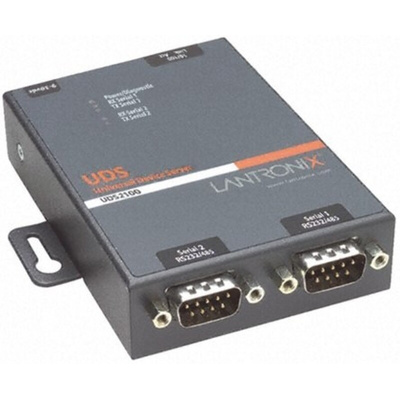

UD2100002-01, Lantronix Serial Device Server, 1 Ethernet Port, 2 Serial Port, RS232, RS422, RS485 Interface, 921.6kbit/s Baud Rate, Модуль

Lantronix Serial To Ethernet Module

The Lantronix serial to Ethernet 2-port module is equipped with flexible power options. It also includes PoE, the UDS makes it simple to network-enabled equipment without changing the way you work. This module is supplied with Lantronix’s COM Port Redirector (CPR) software powered by TruPort™ technology, UDS creates a fully transparent serial connection to the existing PC-based software applications for making it possible to remotely connect to equipment already in the field as if it were connected to a local PC serial port.

Features and Benefits

Networks virtually any device in minutes
Access, monitor and control equipment over Ethernet
Replace dedicated PCs and/or modem lines with fast and reliable Ethernet networking
Configure quickly and easily via HTTP, DHCP, Telnet, serial or Lantronix Device Installer utility
Supports RS-232, RS-422 and RS-485 communications (Two DB9M DTE serial ports for UDS2100)
Delivers flexible power configurations eliminating the need for costly power converters
Simplifies deployment with a tightly integrated, proven form factor rated for use under harsh conditions
Enables interoperability with a versatile collection of ready-to-use networking protocols
Provides new business intelligence from network-enabled equipment
Serial connectors are UDS2100 (dual-port): 2 x DB9M (DTE)
Modes are RS232, RS422 or RS485 (2-and 4-wire configurations supported)
Baud rate is 300bps to 921.6Kbps
Speed is10/100/Auto Mbps

Certifications

FCC certified
C/UL approved
CSA certified
VCCI certified
CE certified
TUV certified
CTick certified
UL 864 9th Edition standards (UDS1100)
WEEE certified
