2866789, Phoenix Contact QUINT-PS/1AC/24DC/40 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc, Блок питания

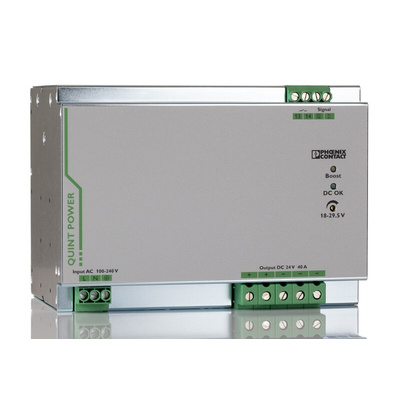

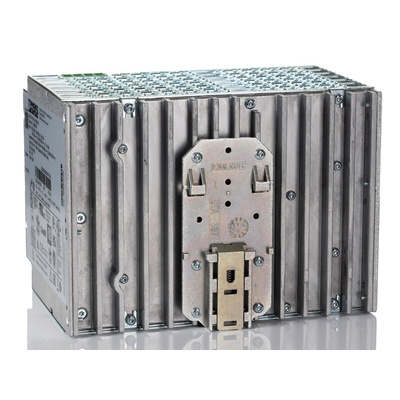

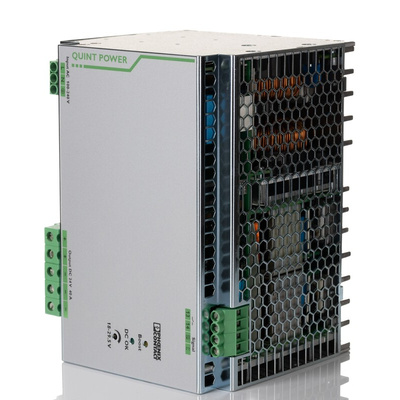

Phoenix Contact DIN Rail Power Supply, Screw Terminals, Insulated - QUINT-PS/1AC/24DC/40 - 2866789

For smart circuit-breaker tripping, try this DIN rail power supply from Phoenix Contact. Thanks to its reliable fuse-breaking technology, it selectively trips MCBs, so your parallel connected loads don't get shut down. This maximises uptime and gives you the benefit of high system availability.
Preventative function monitoring nips breakdowns in the bud, as the device picks up on dangerous operating states before errors occur. Output surge protection blocks the path of power spikes from its input to reduce the chance of damage to connected components. An efficiency of approximately 92% means minimal energy is lost during the switching process.
Use this product to switch power to industrial devices with a 24V DC operating voltage, such as alarms, solenoids and actuators. It's also a good choice for starting heavy motor loads, as its power-boost function ramps up its amperage to 45A.

Features & Benefits

• Compact dimensions of 130 (H) x 180 (W) x 125mm (D) maximise board packing space
• Durable screw connections resist vibration and shock for safe use in harsh settings
• Meets EN 50178/VDE safety and reliability standards for electronic equipment used in power installations

Datasheet 2866789

Datasheet

Instruction sheet_2866789

Line Drawing - 2866789
