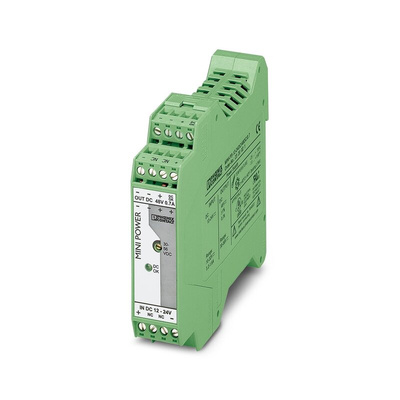

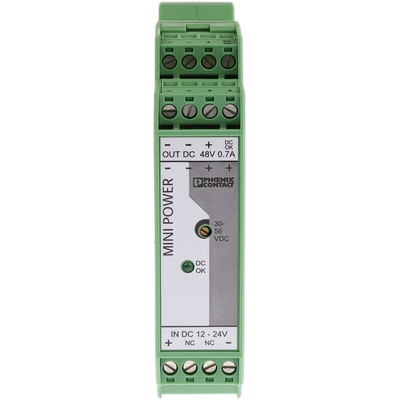

2320021, Phoenix Contact MINI-PS-12-24DC/48DC/0.7 DC-DC Converter, 48V dc/ 700mA Output, 10 → 32 V dc Input, 33.6W, DIN, Преобразователь

Phoenix Contact (MINI-PSDC Series) DC transducer, 24V DC, DIN-rail assembly

The MINI power supply from Phoenix Contact is ideal for MCR (Measurement, Control and Regulating). DC-DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by electrical isolation.

Features and Benefits:

• Electrical isolation for setting up independent supply systems
• Constant voltage: output voltage regenerated even at the end of long cables
• Support conversion to various voltage levels
• Green LED voltage display
• Horizontal DIN Rail mounting
• Compact

Product Application Information

Can be used for networking, industrial equipment and other applications due to their space saving size.

Approvals

CE, UL

Standards

EN 60950 / VDE 0805 (SELV), EN 61558-2-17, EN 50178 / VDE 0160 (PELV), DIN VDE 0100-410 / DIN VDE 0106-1010

Phoenix Contact Isolated DC-DC Converter, 10 to 32V DC Input, 33.6W Power Rating - MINI-PS-12-24DC/48DC/0.7 - 2320021

Effectively convert the voltage of a DC power supply from one level to another with this Phoenix Contact isolated DC-DC converter. The unit establishes an electrical barrier between inputs and outputs to improve the overall safety of circuits and sub-circuits. Use this power supply to measure, control and regulate voltage levels for systems like telecommunications equipment, consumer electronics and industrial operations.
Electrical isolation allows you to set up independent supplies to meet the demands of multiple applications. Constant voltage and output voltage regeneration, even at the end of long cables, ensures a reliable and secure power feed to equipment. Thanks to mains buffering times of 2 to 12ms (milliseconds), you can make rapid adjustments for uninterrupted performance and the prevention of downtimes. As this product is resistant to vibration and shocks, it's suitable for use with safety-critical applications such as medical and railway equipment.

• DIN rail mounting for simple installation in confined spaces
• Broad operating temperature range from -25°C to +70°C for use in harsh conditions
• Output voltage adjustment range between 30 and 56V for compatibility with industrial equipment and applications
• LED voltage display indicates the status of the unit for quick troubleshooting

Datasheet
