3207908, Phoenix Contact PT 4-HESILED 60 (5X20) Series Black Fused DIN Rail Terminal, 0.2 → 6mm², Single-Level, Push In

PT 4-HESI Lever-type Fuse Terminal Blocks

From Phoenix Contact, the PT-4 HESI range of lever type fused terminal blocks designed for 5x20mm cartridge fuses. Compact in design and with front connection the modular terminal blocks are simple and quick to connect even in confined spaces. Featuring Phoenix Contact PT push-in technology the PT-4 terminal blocks are ideal for heavy-duty industrial applications where a fast and secure connection is essential.

Robust and reliable, the insulated housings are constructed from high quality recyclable PA 6.6 (Polyamide) It’s halogen-free, UV resistant and has a high impact strength and chemical resistance.

In addition, this range of Phoenix Contact DIN rail terminals are part of the CLIPLINE complete system. The CLIPLINE complete system offers a uniform range of accessories for all connection technologies, thanks to the double function shaft feature.

What is PT connection technology?

PT Push-in technology has been developed by Phoenix Contact to provide a quick, safe and convenient method for direct conductor connection. Solid conductors or stranded conductors with ferrules can be inserted directly into the terminal block, without the need for specialist tooling. When the conductor is inserted, the contact spring opens automatically and forces enough pressure onto the conductor against the current bar. Releasing the spring is easy, an integrated push-button allows you to release the conductor safely and without direct contact with any live parts. The latch function of the integrated push-button can be operated with any standard screwdriver.

Features and Benefits

• Easy handling, tool-free connection


• Compact in design for space-saving modular DIN rail mounting


• Quick identification of faulty fuses thanks to LED status indicator 708-1699 and 708-1611 only


• Faulty fuses easily replaced


• Suitable for solid wire conductor cross section 0.2mm² to 6.00 mm² or flexible wire conductor cross section 0.2mm² to 4.00 mm²


• 24 to 10 AWG


• 6.3 A maximum load current rating (the current is determined by the fuse used)


• Various voltages are available, 12 to 30V, 30 to 60V and 110 to 250V ac/dc


• -60 ˚C to + 85 ˚ C operating temperature range


• UL 94 V0 flammability rating


• IEC 60947-7-3


• Terminals compatible with standard Top Hat TS35 rail 7.5mm

Applications

The PT 4 range of DIN rail terminal blocks have been rigorously tested for a wide range of approvals. The robust terminal blocks are resistant to vibration, shock and corrosion. Some of the common applications are

• Railway


• Shipbuilding


• Machine building


• Plant engineering


• Industrial distribution boards


• Industrial controls


• Control cabinets and panels

Optional accessories

A range of optional accessories are available for the PT 4 DIN rail terminals. A few typical examples are,

• 2 position Plug-in bridge see part number 648-7469


• 3 position Plug-in bridge see part number 649-0106


• 2 meter length of TS35 slotted DIN rail see part number 803-9491


• DIN rail end piece see part number 803-9602

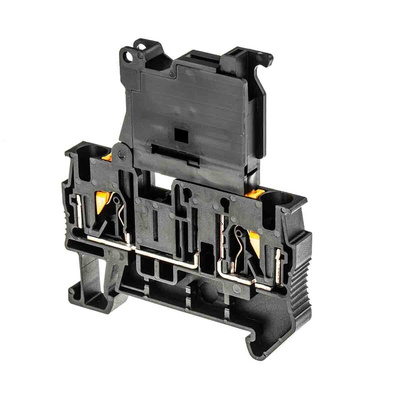

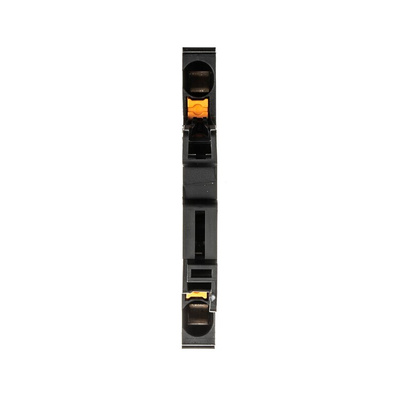

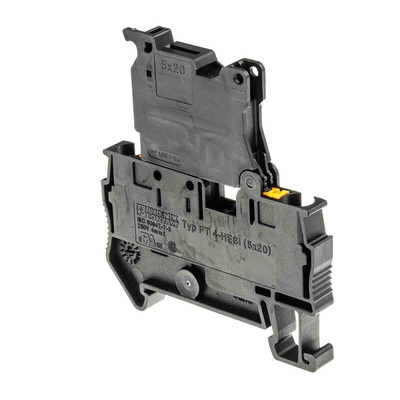

Phoenix Contact Fused DIN Rail Terminal, PA Insulating Material, Open Side Panel - PT 4-HESILED 60 (5X20) - 3207908

Want to stop short circuits and overload hazards in their tracks? Use this fused DIN rail terminal block from Phoenix Contact to protect your system. It's designed to hold 5 x 20mm cartridge fuses that cut the power supply to a network in the event of a fault, preventing machine damage and injury from electric shocks.
Thanks to compact dimensions of 56 (L) x 6.2 (W) x 57.3mm (H), this terminal block is a handy choice for tight setups. Its sturdy PA housing gives plenty of impact protection so it's ideal for heavy-duty use. The housing also doubles up as an insulator to keep you safe from shocks.
Modular construction ensures this block fits in neatly with other components in large-scale applications. DIN rail mounting means installation is tool-free, saving time and effort. Terminal blocks like this are commonly found in assembly lines and industrial lighting systems.

Features & Benefits

• UL94 V-0 flammability rating means it stops burning in 10 seconds or less in the event of a fire
• Wide operating temperature range between -60°C and +105°C for use in challenging conditions
• 60V voltage rating makes it suitable for low-voltage systems

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Datasheet 3207908
