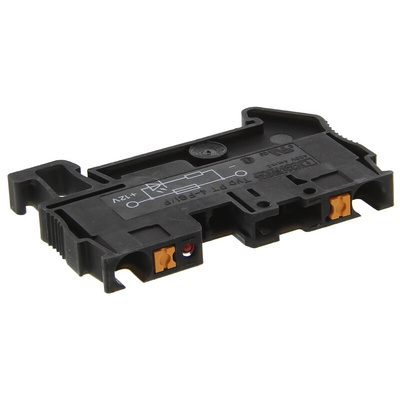

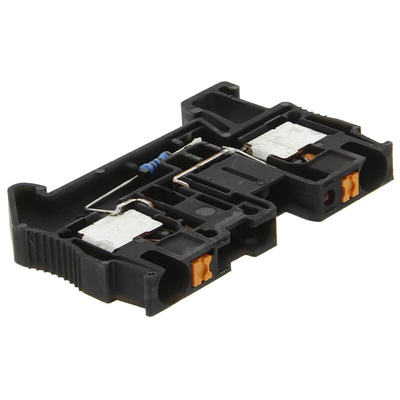

3208951, Phoenix Contact PT 4-FSI/F-LED 12 Series Black Fused DIN Rail Terminal, Single-Level, Push In Termination, Fused

PT Type F Fused DIN rail terminal block - Phoenix Contact

The PT DIN rail mounted terminal blocks from Phoenix contact are fused, type F terminal blocks that give you the added protection compared to a conventional DIN rail terminal block. PT series blocks are small in size, so it allows for wiring in confined spaces while also allowing a more compact setup on a single rail. These terminal blocks have a double function shaft while also having an additional testing port and thanks to the push-in connection technology, you'll have an effortless install. Simply plug in your cable and ensure a tight connection has been made by slightly tugging the cable.

The housing is made from a black polyamide material and is backed by a flammability rating of V0. Not to mention, these PT terminal blocks also have an LED to allow you to determine your voltage rating.

Features and benefits:

• Added protection with an F type fuse


• Small size allows for even the tightest of installs


• LED to indicate voltage


• 50% less insertion force thanks to Phoenix's initiative push-in connection technology

Complete Line:

The PT series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

Phoenix Contact Fuse Modular Terminal Block, 24 to 10AWG, 10A Current Rating - PT 4-FSI/F-LED 12 - 3208951

This Phoenix Contact fuse modular terminal block effectively protects your electrical systems against overcurrent and short circuits. It's an insulated connector that securely terminates, grounds and isolates two or more wires to deliver reliable power feeds to components. The fuses blow and discontinue power supplies in the event of faults and failures to safeguard the parts connected to a system. Use it for lighting controllers, telecommunications systems and HVAC (heating, ventilation and air conditioning) controls.
You can quickly and easily terminate and connect wires thanks to the innovative Phoenix Contact push-in connection mechanism. It features the CLIPLINE complete system for the tool-free wiring of ferrules and solid conductors. At just 56mm long and 36.5mm wide, this compact unit can be installed in tight arrangements on DIN rails. An LED status indicator displays the voltage and function of the terminal block so you can easily spot faults and prevent unnecessary downtime.

• Versatile terminal block accommodates wire sizes from 24 to 10AWG (American Wire Gauge)
• Robust and durable plastic casing to isolate internal wires and prevent electric shocks
• Features Phoenix Contact's innovative push-in connection technology, which needs 50% less insertion force and helps prevent wire damage

Push-In Connection Terminal Blocks

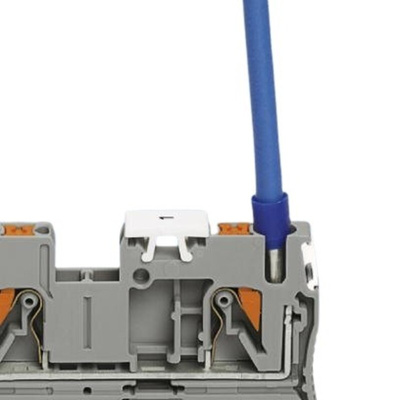

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

PT 4-FSI/F-LED 12 Data Sheet

Datasheet
