3208964, Phoenix Contact PT 4-FSI/F-LED 24 Series Black Fused DIN Rail Terminal, 4mm², Single-Level, Push In Termination, Fused

Phoenix Contact Fused DIN Rail Terminal, LED Voltage Indicator, 6kV Surge Voltage Rating - PT 4-FSI/F-LED 24 - 3208964

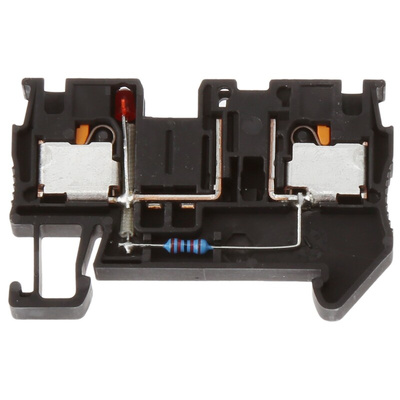

Keep electrical hazards at bay using this fused DIN rail terminal from Phoenix Contact. It has a single-level configuration and compact dimensions of 56 (L) x 6.2 (W) x 36.5mm (D), so it takes up minimal space in your setup. A built-in flat fuse protects against overcurrent or short circuits, preventing damage to connected devices. There's an LED indicator that tells you quickly what voltage linked components have, making visual monitoring and diagnosis a breeze.
This unit's PA insulation resists impact and abrasion, so it's a reliable pick for use in harsh industrial settings. As it accommodates wire sizes from 24 to 10AWG, it's a versatile workmate. The push-in connection style means wiring is quick and completed without tools. You'll find terminals like this one commonly installed in control centres and conveyor systems.

Features & Benefits

• Surge voltage rating of 6kV to protect against damage from sudden spikes in voltage
• UL 94-V0 rating means it stops burning in under 10 seconds for safety in the event of a fire
• Fire-safety-approved according toEN 45545-2 for use in railway vehicles
• Light weight of 8.67g puts minimal strain on your DIN rail
• Performs reliably in a broad operating temperature range of -60°C to +105°C

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Datasheet

Line Drawing - 3208964
