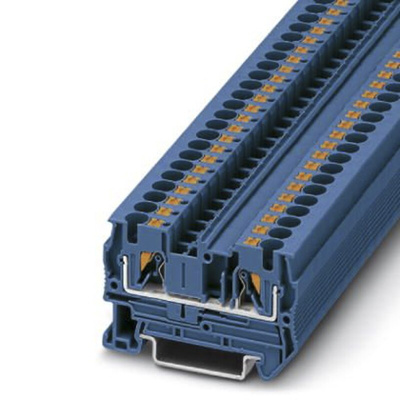

3211760, Phoenix Contact PT 4 BU Series Blue Feed Through Terminal Block, 0.2 → 6mm², Single-Level, Push In Termination

Phoenix Contact Feed Through Terminal Block, 8kV Rated Surge Voltage, Push-In Connection - PT 4 BU - 3211760

Need a safe and reliable link between cables and your DIN rail? Choose this feed through terminal block from Phoenix Contact. Thanks to its push-in terminals, you don't need tools to join cables to the unit, saving time and hassle. As the unit's made of PA, which offers dependable impact resistance, it's suitable for use in harsh environments. The housing also does double duty by serving as an insulator for the circuit and preventing electric shocks to ensure safe operation.
With an 8kV rated surge voltage, this terminal block can handle sudden voltage spikes without suffering damage. This safeguards your network against arcs and fire outbreaks. Compact dimensions of 56 (L) x 6.2mm (W) make it your space-efficient workmate in tight setups. Devices like this are a must-have in the railway industry, as well as in machine-building applications.

Features & Benefits

• UL 94-V0 rating indicates that it stops burning in 10 seconds or less in the event of a fire
• Wide operating temperature range between -60°C and +105°C for use in challenging conditions
• Open side panel for easy integration with other terminal blocks

Push-In Connection Terminal Blocks

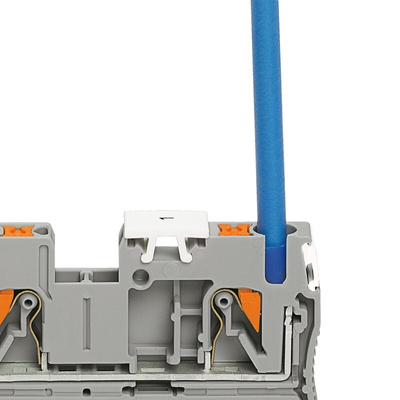

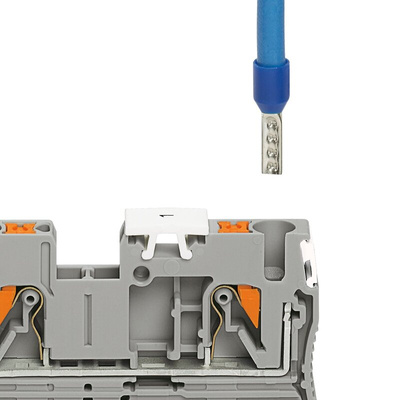

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

PT 4 BU Data Sheet

Instruction Sheet - PT 4 Series

Line Drawing - 3211760
