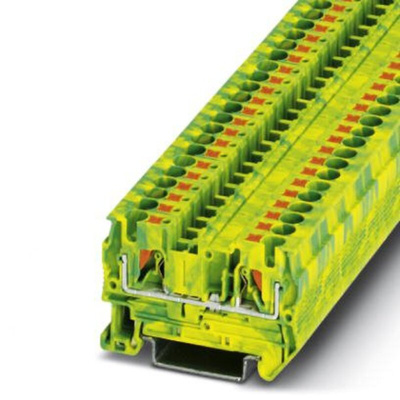

3211766, Phoenix Contact 2-Way PT 4-PE Earth Terminal Block, 24 10 AWG Wire, Push In, Polyamide Housing, Блок заземления

PT 4 Feed-Through and Multi-Conductor Terminal Blocks

50% less insertion force
Compact design and front connection facilitate wiring in the smallest of spaces

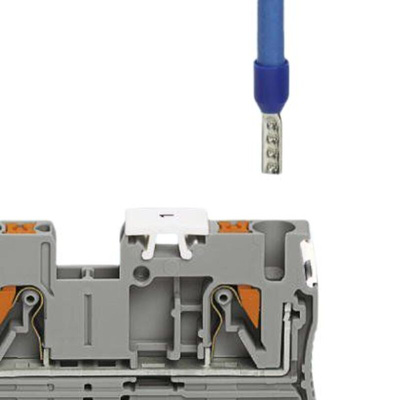

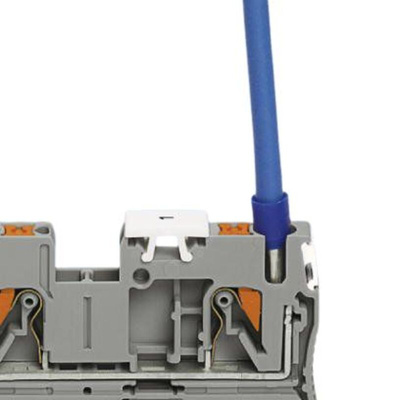

Tool-free wiring of conductors with ferrules or solid conductors
Stranded conductors with ferrules can be inserted directly with PIT 2,5 (from 0.34 mm²) and PIT 4 (from 0.5 mm²)
Actuation lever opens the terminal point, so there is no direct contact with live parts
Double bridge shaft enables individual potential distribution and supply

Phoenix Contact Ground Modular Terminal Block, 2 Way, Push-In - PT 4-PE - 3211766

Use this terminal block from Phoenix Contact to link wiring and components simply and safely. It's specifically designed to work with grounding and earthing cables, and will help discharge excess electricity from your equipment and circuitry, protecting it from interference.
You can mount the block on a standard DIN rail, so it's compatible with common fixtures. This makes it quick to install and easy to integrate into your existing system. It's designed to make simple push-in connections, so you can wire it in without the need for any tools. This cuts down on maintenance and repair time and lets you alter or expand your setup with ease.
The grey polyamide (PA) housing provides excellent resistance to heat and abrasion, making this a durable product that will stand the test of time.

• Green and yellow in colour
• Dimensions of 56 (length) x 6.2 (width) x 44mm (height)
• Two-way block
• Wire size range of 24 to 10AWG (American Wire Gauge)
• Operating temperature range of -60°C to +130°C
• Surge rating of 8kV
• UL (Underwriter Laboratories) 94-V0 rating for flammability, indicating it will burn for no more than 15 seconds when exposed to a naked flame

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
