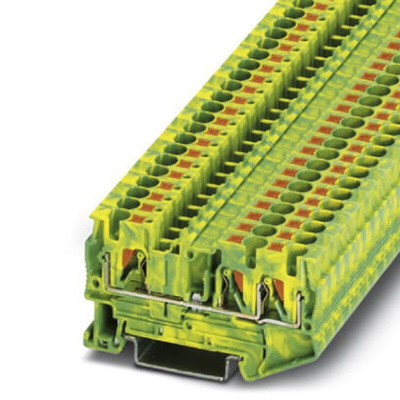

3211780, Phoenix Contact 3-Way PT 4-TWIN-PE Earth Terminal Block, 0.2 → 6mm², 24 → 10 AWG Wire, Push In, Polyamide, Блок заземления

Phoenix Contact Earth Terminal Block, 1.02W Maximum Power Dissipation, Open Side Panel - PT 4-TWIN-PE - 3211780

Get ground cables and your DIN rail quickly linked up with this earth terminal block from Phoenix Contact. Thanks to its three-way design, you can connect multiple wires simultaneously, making it your versatile workmate for multi-circuit protection. The terminal block has a clamping foot that transforms the rail into a busbar, preventing damage from excess feedback current. Thanks to this, you don't have to worry about electric shocks or the risk of fire outbreaks.
The block's durable PA housing provides reliable impact protection, so it shrugs off bumps and scrapes in harsh environments. As it's DIN rail mounted, you don't need any installation tools, so that's one less thing to worry about. What's more, with its open side panel, you can easily integrate the unit with other terminal blocks on your circuit. You'll find it used in the process and packaging industry.

Features & Benefits

• Low power loss of 1.2W makes it an energy-efficient solution
• Can accommodate wire sizes between 24 and 10AWG for versatility
• ATEX certified for use in potentially explosive settings
• UL 94-V0 flammability rating indicates that it stops burning in 10 seconds or less in the event of a fire

Push-In Connection Terminal Blocks

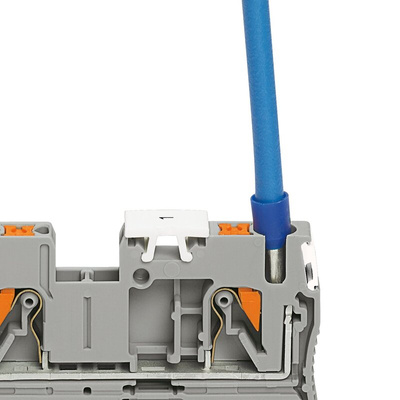

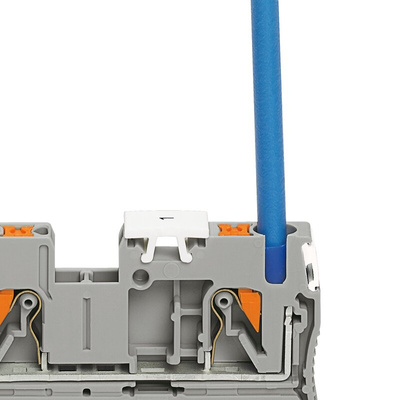

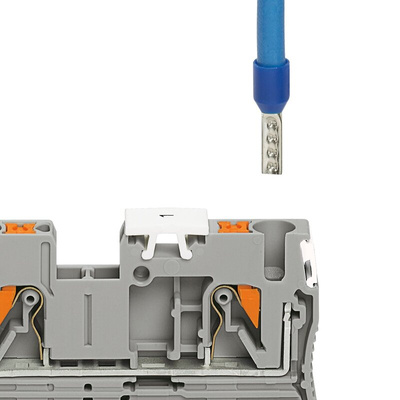

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Datasheet

Instruction Sheet - 441119

Line Drawing - 3211780
