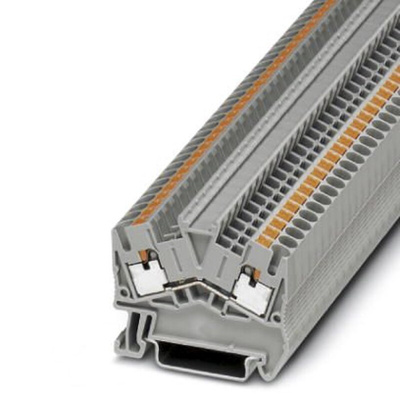

3211799, Phoenix Contact PTS 2.5 Series Grey Feed Through Terminal Block, 0.14 → 4mm², Single-Level, Push In Termination

PT 2.5 Feed-Through Terminal Blocks

50% less insertion force
Angled conductor entry
Direct plugging from 0.34mm²
Actuation button can be operated with any kind of screwdriver
Compact design and front connection facilitate wiring in the smallest of spaces
Equipped with four bridge shafts to offer a wide range of potential bridging options

Phoenix Contact Feed-Through Terminal Block, 26 to 12AWG, 800V Nominal Voltage - PTS 2.5 - 3211799

Protect your electrical systems against overcurrent and short-circuiting with this feed-through terminal block from Phoenix Contact. The component has one connection level through which you can join one or more conductors. Polyamide (PA) insulation safeguards equipment against excess current surges across connected wires and increases safety by preventing electrical shocks.
The unit's DIN-rail mounting capability allows you to simply slide the unit onto the rail in control cabinets. This saves space and helps order parts in an efficient and safe manner. Establish easy and quick direct conductor connections, thanks to the innovative push-in method of the CLIPLINE complete system.
Because it uses up to 50% lower insertion force, it's possible to plug solid and stranded conductors directly with ferrules of 0.34mm² and more. This unit's compact dimensions of 49mm (length) and 5.2mm (width) together with its front connection help with wiring in the smallest of spaces. Four bridge shafts make the terminal block versatile and offer different potential bridging options.

• Use any screwdriver to operate the actuation button
• UL 94 V-0 standard compliance means the product is fire-safe and won't ignite or spread fires
• ABS certification assures you that this terminal block has passed quality and safety testing

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
