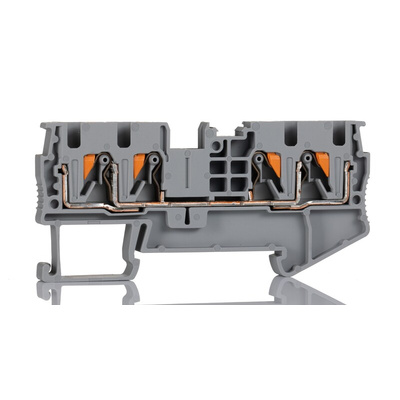

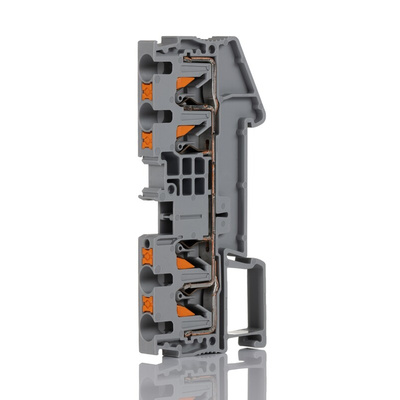

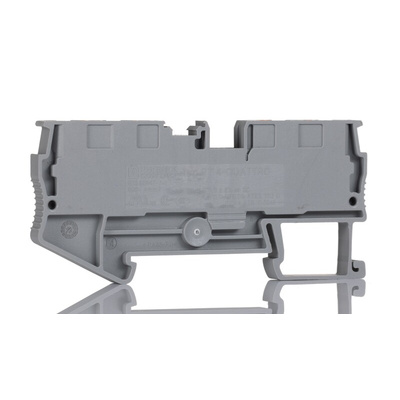

3211797, Phoenix Contact PT 4-QUATTRO Series Grey Feed Through Terminal Block, 0.2 → 6mm², Single-Level, Push In

Phoenix Contact Feed-Through Terminal Block, Grey Colour, A4 Internal Cylindrical Size - PT 4-QUATTRO - 3211797

Looking for a device to securely join your industrial wiring? Choose this feed-through terminal block from Phoenix Contact for the job. It's ideal for applications such as process automation, machine manufacturing and the rail industry. This unit works with a maximum current of 32A, so you can rest assured it's a solid choice for high-power tasks.
Waste energy is kept minimal, thanks to the block's low power dissipation of just 1.02W. And you won't suffer unexpected downtime caused by overvoltage, as 8kV surge protection is built in to safeguard your electrical setup.
The unit's polyamide construction resists mechanical stress and abrasion to deliver a long service life. As it accepts wires between 0.2 and 6mm², this is a versatile option. Its push-in termination method makes installation quick and connections reliably secure.

Features & Benefits

• Performs without a hitch in temperatures between -60°C and +105°C
• Light 12g weight won't strain the mounting surface
• Fire-resistant housing self-extinguishes within 10 seconds for enhanced safety
• Compact measurements of 6.2 (W) x 35.3 (H) x 77mm (L) easily fit into a standard enclosure

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

PT 4-QUATTRO Data Sheet

Installation Sheet - 3211797
