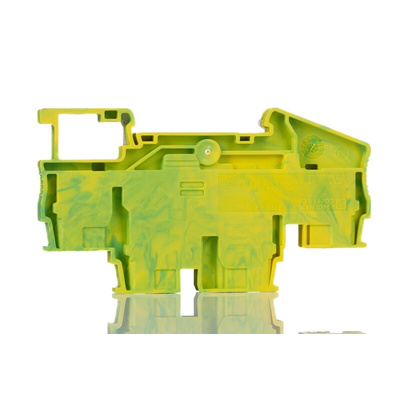

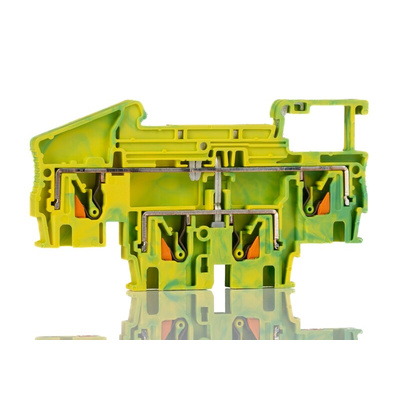

3211854, Phoenix Contact 4-Way PTTB 4-PE Earth Terminal Block, 0.2 → 6mm², 24 → 10 AWG Wire, Push In, Polyamide, Блок заземления

Phoenix Contact Earth Terminal Block, Double Level, +110°C Maximum Operating Temperature - PTTB 4-PE - 3211854

Keep your machinery firmly grounded with this earth terminal block from Phoenix Contact. As its double-level structure allows for up to four connections, you can insert multiple wires into it to save space in a cramped panel. It accommodates wire sizes between 24 and 10AWG, making for a reliable companion that'll see your system through thick and thin connections. Fixing your cables in place is hassle-free as you'll only need to give them a push into the termination points.
Built-in mechanical shock resistance means this component will stand strong even when it's on a shaky surface, so it's dependable for demanding operations. Industry-standard green and yellow housing gives it an eye-catching finish that's easy to spot during maintenance or troubleshooting. You'll typically find this device used to protect railway, plant engineering and process control systems.

• Touch-proof for safe manual handling
• PA housing offers insulation protection to help prevent overheating
• UL94 V-0 flammability rated, so helps stop fire from spreading
• Broad operating temperature range between -60°C and +110°C for use in challenging settings

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
