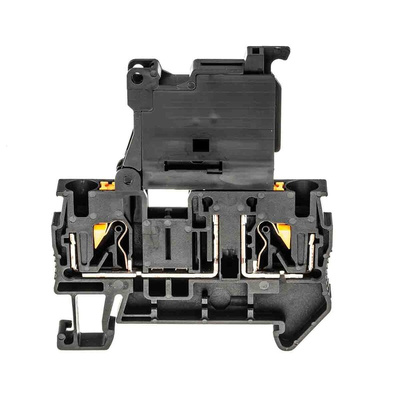

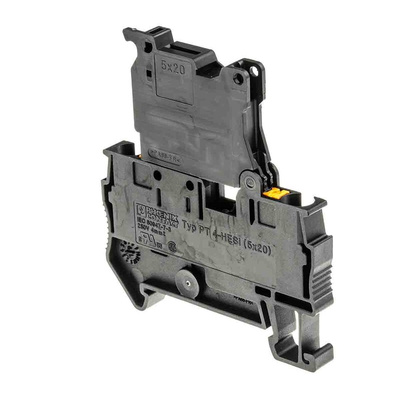

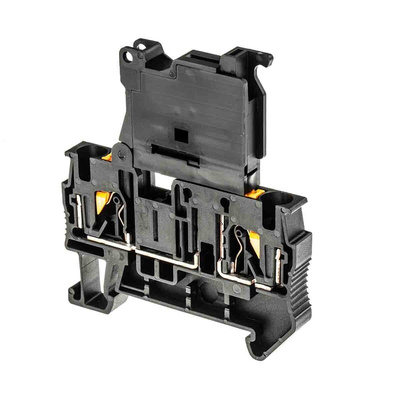

3211861, Phoenix Contact PT 4-HESI (5X20) Series Black Fused DIN Rail Terminal, Single-Level, Push In Termination, Fused

Phoenix Contact Fused DIN Rail Terminal, Push-In Connection, 24 to 10AWG Cable Size - PT 4-HESI (5X20) - 3211861

When you're looking to safely link wires to your electrical circuits, go for this DIN rail terminal from Phoenix Contact. Its innovative PT connection technology allows for simple, tool-free termination of conductors, saving installation time and boosting productivity. The terminal can accommodate cables ranging from 24 to 10AWG, making it a versatile connection solution.
An integrated fuse cuts power to the circuit in the event of an overload or short circuit to ensure safe operation. Thanks to a rated surge voltage of 6kV, the unit withstands heavy voltage spikes without damage, making it suitable for sensitive applications.

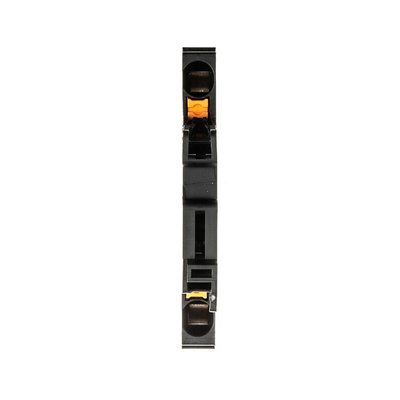

A narrow width of 6.2mm makes this terminal a practical choice for installation in areas with limited space. It's part of the CLIPLINE complete system for use in control cabinets and panels.

Features & Benefits

• UL94V0 rating means that it's flame-resistant and burning stops in 10 seconds in the event of a fire
• IEC 60947-7-3 approved to conform to safety standards for fuse terminals
• Voltage rating of 400V for use in low-voltage settings

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
