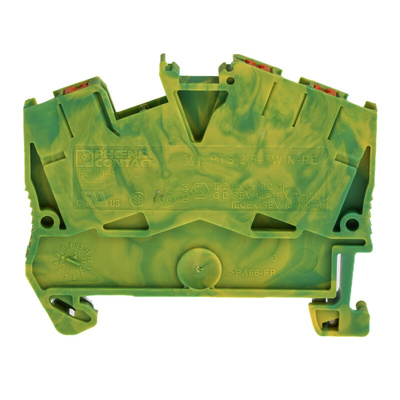

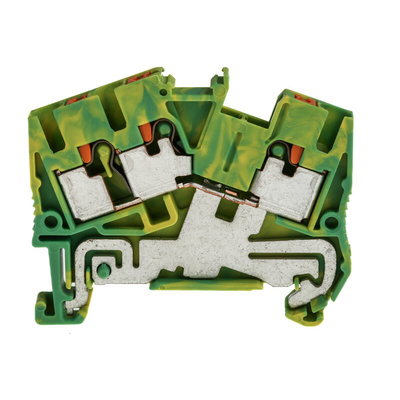

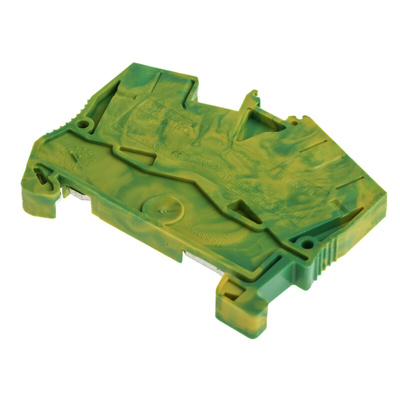

3211935, Phoenix Contact 3-Way PTS 2.5-TWIN-PE Earth Terminal Block, 26 → 12 AWG Wire, Push In, Polyamide Housing, Блок заземления

PTS 2.5 Ground Terminal Blocks

Angled conductor entry
Large space saving when used in concealed wiring systems
Equipped with four bridge shafts to offer a wide range of potential bridging options
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail

Phoenix Contact Ground Terminal Block, 3 Way, 26 to 12AWG - PTS 2.5-TWIN-PE - 3211935

Use this ground terminal block from Phoenix Contact to safely earth cables on your printed circuit board (PCB). It efficiently discharges excess electricity to prevent magnetic fields from causing interference with other devices. The unit is simple to identify in a crowded set-up thanks to its green and yellow housing colours.
This easy-to-use terminal block uses a push-in connection method that calls for low insertion force. It accommodates both stranded and solid conductors ranging in size from 26 to 12AWG (American Wire Gauge), making it a versatile choice. For simple installation, the unit snaps onto a DIN rail without the need for specialised tools. The four bridging shafts offer a wide range of potential bridging options for enhanced flexibility in your electrical circuit design. Choose a ground terminal block like this one for electrical distribution boards or machine control systems.

• Meets IEC 60947-7-2 safety requirements for low-voltage switchgear
• Polyamide (PA) housing offers electrical insulation for enhanced electrical safety
• Meets UL 94-V0 flammability standards, meaning it's self-extinguishing in the event of a fire

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
