3212011, Phoenix Contact 4-Way PTS 2.5-QUATTRO-PE Earth Terminal Block, 4mm², 26 → 12 AWG Wire, Push In, Polyamide, Блок заземления

Phoenix Contact Earth Terminal Block, Single Level, Push-In Terminals - PTS 2.5-QUATTRO-PE - 3212011

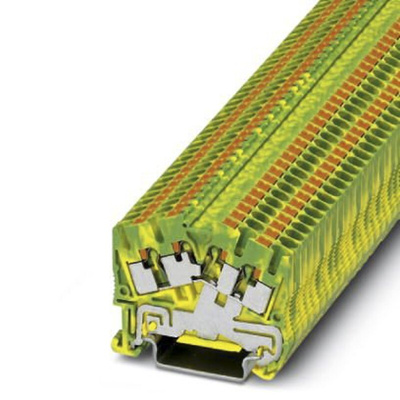

Don't leave the safety and reliability of your power supply up in the air – ground it with this earth terminal block from Phoenix Contact. The green and yellow housing makes it easy to recognise on your DIN rail. It's made from polyamide, which is flame retardant. As a result, it meets UL 94-V0 standards indicating that any burning stops in ten seconds. This insulating material also protects against static electricity at temperatures between -60°C and +130°C, to keep it operating safely in harsh conditions.
The block's tested to meet European railway safety standards EN 50155 and EN 45545-2, hazard level three. So, it's a dependable solution for train and tram seals, circuit boards and electronics, as well as industrial networks.

Features & Benefits

• Accepts wires sizes between 26 and 12AWG for flexibility
• Push-in terminals with an angled entry make it quick and easy to hook up when you're in an awkward spot
• Standard shape and 5.2mm pitch make it a cinch to slot onto rails and bridge across blocks
• Meets IEC standard 60947-7-2 for protective conductor terminal blocks, to deliver safe and sound connections

Push-In Connection Terminal Blocks

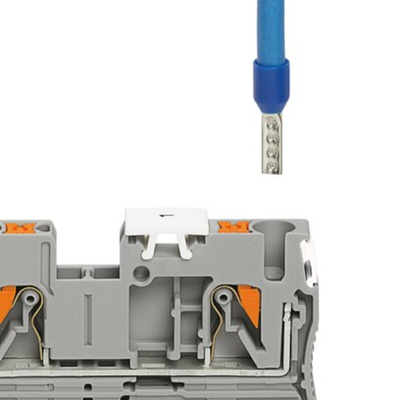

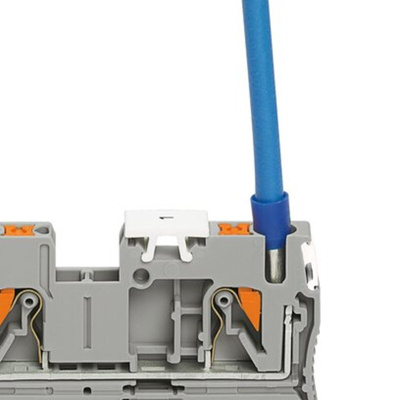

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Datasheet

Instruction Sheet - 3212011

Line Drawing - 3212011
