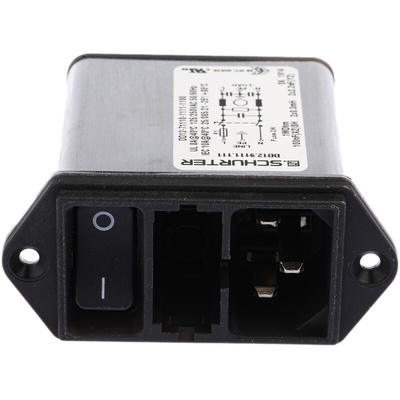

Schurter 10A, 250 V ac Male Panel Mount Filtered IEC Connector DD12.9111.111, Quick Connect Terminals 6.3 x 0.8 mm, Фильтр

Schurter Inlet IEC Filter

The Schurter DD12 series IEC inlet filter is a male type, single fuse, ultra-compact panel mount screw-on version from the front side power entry module and has four key functions. It has a voltage rating is 250VAC with a high-performance current rating of 10A. It acts as a line filter (in the standard and medical version), class I inlet protection. It has a fuse holder for fuse-links of 5mm x 20 mm and a 2-pole line switch.

Note:
Fuse drawer must be ordered separately.

Schurter range:
Panel mount, IEC inlet plugs with integral mains filter, ultra-compact design. Fuse holders accept 5mm x 20mm fuses.

Features and Benefits

Aluminium case provides good shielding

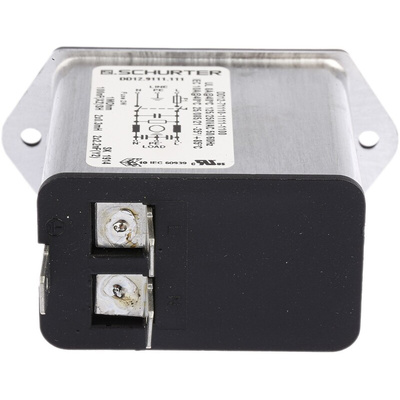

Quick connect terminals of 6.3mm x 0.8mm
All single elements are already wired
Plug removal necessary for fuse-link replacement
Innovative EMC shielding
Ideal for application with high transient loads
Fuse holder is accessible from the equipment front
Operating temperature ranges between -25°C and 85°C

Applications

Electrical and electronic equipment,
Household equipment
Single-phase and switch-mode power supplies

Certifications

VDE approved
UL approved

DD12 Power Entry Modules with Line Filter Data Sheet

CE Declaration of Conformity DD12
