Schurter 10A, 250 V ac Male Panel Mount Filtered IEC Connector 2 Pole DD12.9321.111, Quick Connect Terminals 6.3 x 0.8, Фильтр

Schurter Fuse Inlet Filter

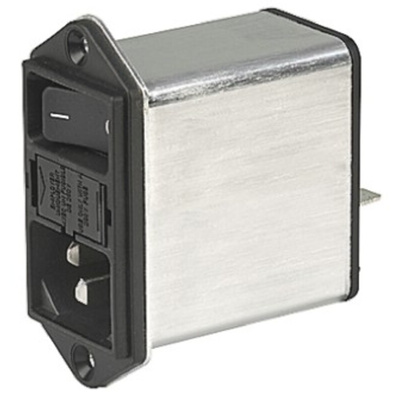

The Schurter DD12 series inlet filter is a male, panel mount type C14 IEC connector with a dual fuse. It is ultra-compact, panel mount screw-on version from the front side and has four key functions. The filter has a voltage rating of 250VAC with a high-performance current rating of 10A. It has a 2-pole Fuseholder for fuse-links of 5mm x 20mm and a 2-pole line switch. It acts as a line filter in the standard version and has class I inlet protection.

Note:
Fuse drawer must be ordered separately.

Schurter range:
Panel mount, IEC inlet plugs with integral mains filter, ultra-compact design. Fuse holders accept Ø5mm x 20mm fuses.

Features and Benefits

Aluminium case provides good shielding
Quick connect terminals of 6.3mm x 0.8mm
All single elements are already wired
Plug removal necessary for fuse-link replacement
Innovative EMC shielding
Ideal for application with high transient loads
Fuse holder is accessible from the equipment front
Operating temperature ranging between -25°C and 85°C

Applications

Medical equipment

Certifications

VDE
UL approved

DD12 Power Entry Modules with Line Filter Data Sheet
