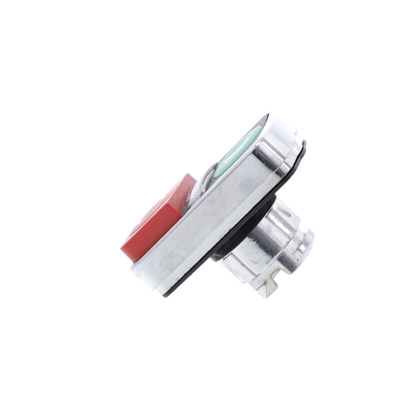

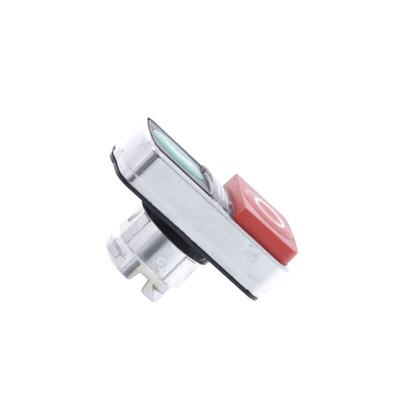

ZB4BW7L3741, Schneider Electric Harmony XB4 Series Green, Red Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP69K

Schneider Electric Illuminated Double Pushbutton Head, Green and Red - Harmony XB4 Series - ZB4BW7L3741

Activate and deactivate your devices with Schneider Electric's double pushbutton head. It has dual buttons with distinct I and O markings for use as a convenient toggle signalling system. The green button is flush and illuminated, while the red button is raised. To increases the unit's durability, the bezel is plated in chromium metal which is highly resistant to rust. As it has an operating temperature range of -40°C to +70°C, this button can function safely in challenging environments such as cold-storage facilities.

Features & Benefits

• Spring return mechanism eases return to original state for successive use
• IP66 and IP69K (ingress protection) ratings indicate protection from damage caused by dust and high-temperature environments
• Light 0.056kg weight for easy transportation and storage
• 1,000,000 functional cycles for long-lasting operation

Applications

• Relay devices
• Control panels
• Conveyor belt
• Light fixtures

What do the I and O markings on this device mean?

These symbols are derived from the binary system and represent the ON/OFF function in this pushbutton. Pressing the green I button will turn the device on and pressing the red O button will turn it off.

Datasheet

Catalogue - Harmony XB4 metal Control and signaling units

Instruction Sheet - ZB4BW7L3741

Product Environmental Profile
