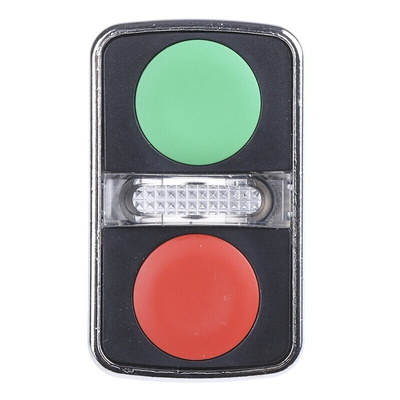

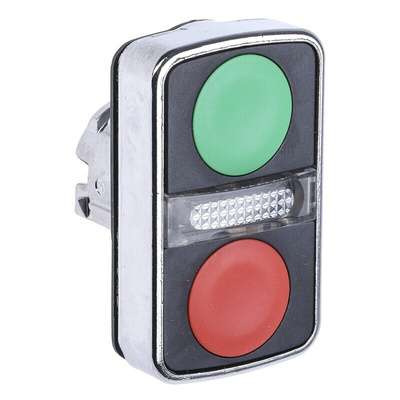

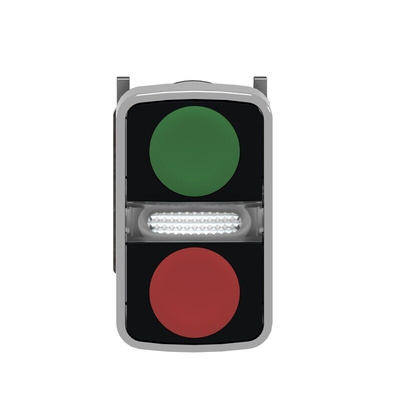

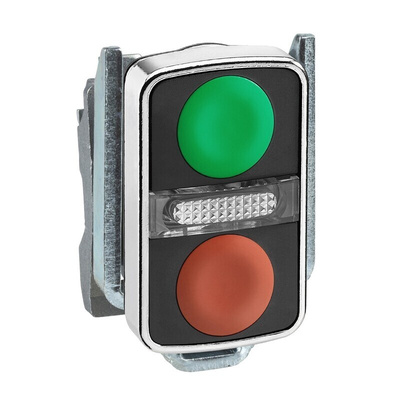

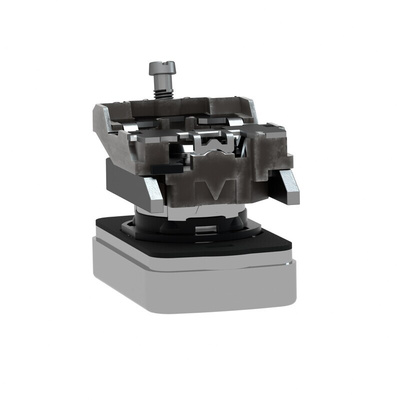

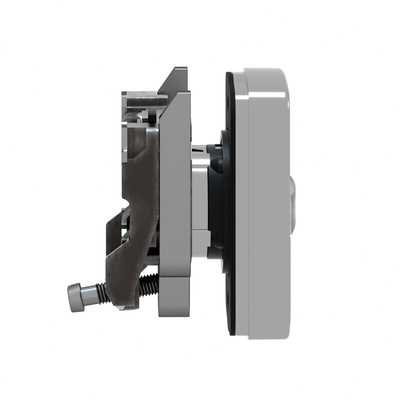

ZB4BW7A3740, Schneider Electric Harmony XB4 Series Green, Red Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67,

Double Illuminated Pushbutton Heads, ZB4-B

Double headed spring return pushbutton
Green (I) & Red (0)
For use with bodies comprising of a light block with integral LED (preferred colour yellow)
Protection Rating: IP65/66

Schneider Electric Push Button Head, Illuminated, Screw Clamp Terminal Type - Harmony XB4 Series - ZB4BW7A3740

Get ready to go with this red/green dual push button head from Schneider Electric. As it's part of the modular XB4 series, it can be combined quickly and easily with a body containing an integrated LED (such as 922-4927) from the range. The buttons have spring return actuation, so they will automatically go back to their original position when you stop pressing. This makes the unit an efficient option suitable for busy start-and-stop processes, such as conveyors. The buttons are set on either side of a central pilot light, so you'll find it easy to spot them, even in darker settings.

Features & Benefits

• Standard cut-out diameter of 22mm for easy incorporation with existing equipment
• Operating temperature of -40°C to +70°C for use in harsh environments
• Solid metal push button construction for enhanced durability
• IP66 rated for protection against dust and high-pressure water jets

Applications

• Manufacturing processes control
• Industrial operations
• Transportation industry

How do I install this bush button head?

It's simple to install by tightening a screw to close the integrated clamp onto the terminal block, saving you time and trouble.
