Ex i NAMUR Isolating Amplifier for Proximity Sensors and Switches
The signals are transmitted via a relay output (PDT contact) to the safe area
Line fault detection (LFD), 3-way isolation, SIL 2
Group and Category
EN 61326, ATEX II (1) GD [Ex ia] IIC, Ex II 3 G Ex nAC IIC T4 X, [Ex ia] IIC; [Ex iaD]; Ex nAC IIC T4 X, SIL 2 according to EN 61508, CUL Listed, UL Listed, IECEx, UL-EX LIS / CUL-EX LIS
Approvals
CE-compliant

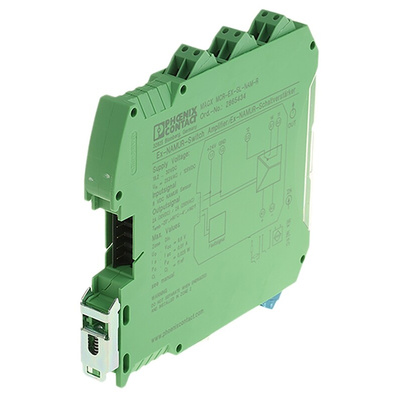

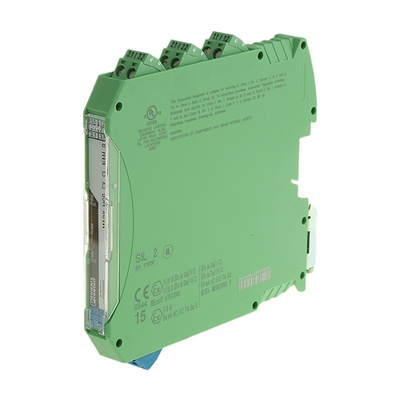

Phoenix Contact Galvanic Isolator, 19.2 to 30V DC - MACX MCR-EX-SL-NAM-R - 2865434
Use this galvanic isolator from Phoenix Contact to operate proximity sensors and switches. Its rigorously tested design means it's suitable for use in explosive areas, providing accurate, usable readings even in harsh conditions.
This galvanic isolator has surface LED (light-emitting diode) indicators to display a range of operating statuses. The yellow light illuminates when the isolator is switching state, the green one lights up for the supply voltage and the red one illuminates when a malfunction occurs. These indicators help you deal quickly with any issues to maximise efficiency.
The unit has compact dimensions of 99 (height) x 12.5 (width) x 114.5mm (depth) for ease of installation in industrial control setups with limited space. You can use the M3 threads to screw it into your DIN rail for a secure, reliable connection.
Features & Benefits
• Wide operating temperature range of -20°C to +60°C makes it suitable for use in demanding conditions
• IP20 (ingress protection) rating means it's touchproof for protection against electric shocks
• Flame-retardant polyamide (PA) housing for increased safety in the event of a fire
Datasheet
