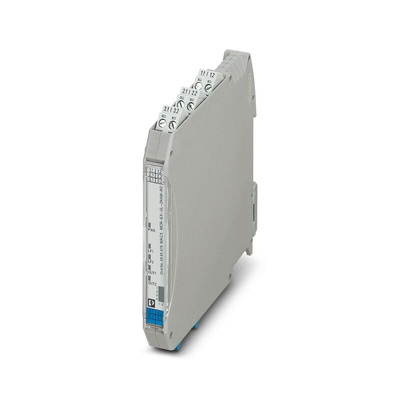

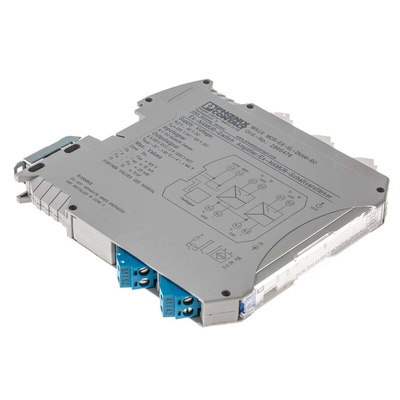

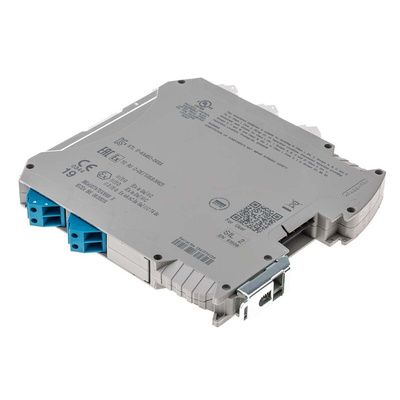

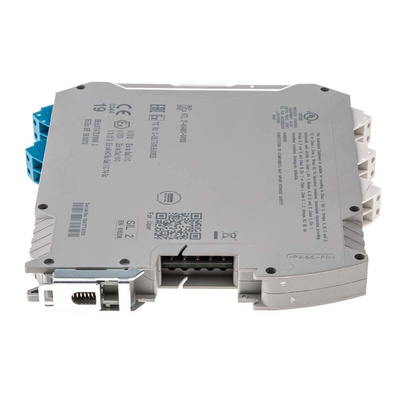

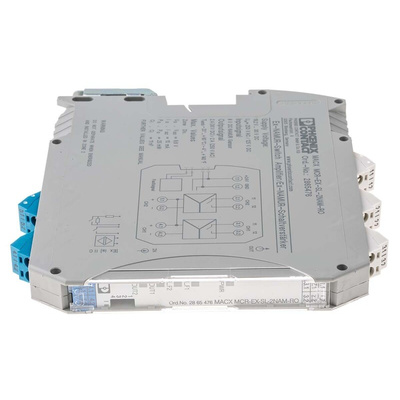

2865476, Phoenix Contact 3RS7006 Series Signal Conditioner, NAMUR Sensor, Switch Input, Relay Output, 19.2 → 30V dc

Ex-i NAMUR Isolating Amplifier, 2-channel

For operating proximity sensors and switches in Ex areas
The signals are transmitted via relay outputs (N/O contact) to the safe area. Line fault detection (LFD), 3-way isolation, SIL 2

Group and Category

EN 61326, ATEX II (1) GD [Ex ia] IIC, Ex II 3 G Ex nAC IIC T4 X, [Ex ia] IIC; [Ex iaD]; Ex nAC IIC T4, SIL 2 according to EN 61508, CUL Listed, UL Listed, IECEx, UL-EX LIS / CUL-EX LIS

Approvals

CE-compliant

Phoenix Contact 3RS7006 Series Signal Conditioner, +60 °C Maximum Operating Temperature, 2 Channels - 2865476

This signal conditioner, isolation amplifier module from Phoenix Contact is a versatile device designed for use in automation, electronics, electrical, and mechanical industries. With dual channel functionality and relay output, this signal conditioner offers high quality performance in a compact package. Ideal for NAMUR sensors and switches, this module ensures precise signal transmission and line fault detection. The wide temperature range and DC supply voltage make it suitable for a variety of applications, providing reliable operation even in challenging environments.

Features & Benefits

• Dual channel isolation amplifier module for NAMUR sensors and switches
• Relay output ensures reliable signal transmission
• Wide operating temperature range of 20°C to +60°C for versatile use
• Compact design with DIN rail connector for easy installation
• LED indicators for easy monitoring of supply voltage, switching state, and malfunctions
• Conforms to SIL 2 safety standards for enhanced reliability
• Line fault detection feature for added safety and protection

Applications

• Ideal for operating proximity sensors in hazardous environments
• Suitable for use in automation systems for signal conditioning
• Perfect for controlling switching behaviour in industrial applications

Can it operate in a wide temperature range?

Yes, this signal conditioner can operate in temperatures ranging from -20°C to +60°C.

Is the installation process user-friendly?

Yes, the compact design and DIN rail connector make installation quick and easy.

Can it be used for line fault detection?

Yes, this signal conditioner features line fault detection for added safety and protection.

Does it comply with safety standards?

Yes, this module conforms to SIL 2 safety standards for reliable performance.
