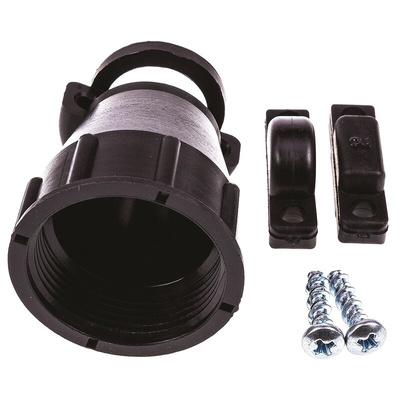

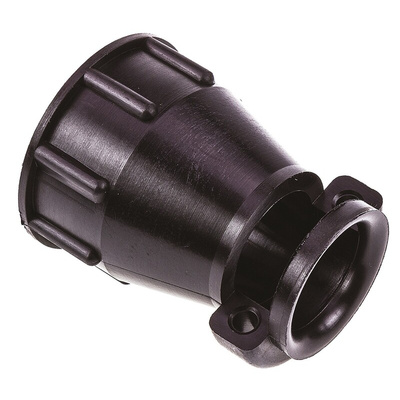

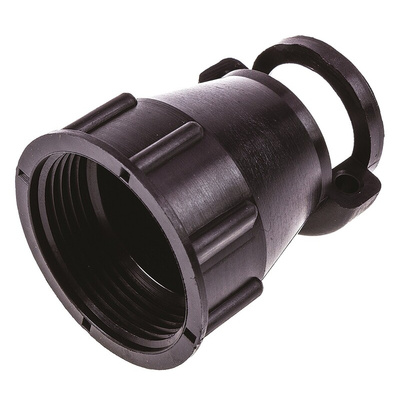

206070-8, TE Connectivity, CPC Cable Clamp

Shield and Strain Relief Kit

For use with TE Connectivity's Circular Plastic Connectors.

TE Connectivity Cable Clamp

The TE Connectivity CPC series black circular connector cable clamp is made of thermoplastic material. It has a maximum cable bundle diameter of 11.51mm. This cable clamp has a thread size of 15/16-20 UNEF-2B. This CPC series cable clamp provides strain relief and can be used on all CPC series receptacles and plugs. The clamping areas are adjustable by inverting or changing clamping inserts. It quickly connects and disconnects with its thread assist and a positive detent coupling. The receptacle and the plug housings accept the Type-III+ or size 20 signal contacts, Type-XII power contacts or the AMP POWERBAND contacts. The housings come in the configurations designed to handle the signal, power, or combinations of both in the same housing.

Features and Benefits

Affixing method is screw
Shell size is 23
Lightweight
Polarized for proper mating of connector halves
Removable contacts and replaceable coupling ring make field repair easy

Applications

Aerospace and defence equipment and systems
Agricultural machinery
Communication equipment, networking, data storage, computers and peripherals
Construction equipment
HVAC, commercial and building equipment
Industrial machinery, factory automation
material handling equipment
Lighting and signage
Medical instrumentation and equipment
Motor vehicles-auto/bus/truck
Off-road and recreational vehicles
Rail and transit vehicles and systems

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL94 V-0

TE Connectivity CPC Plastic Series 1, 2 and 3

Cable clamp size 17 CPC Technical Drawing
