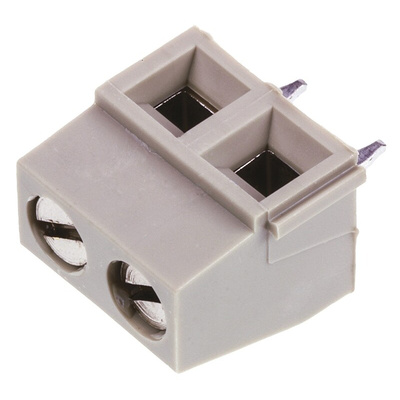

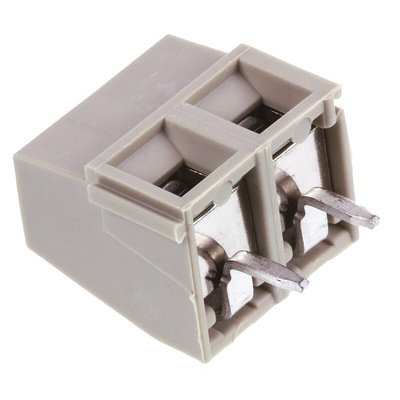

1546216-2, TE Connectivity Buchanan Series PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

TE Connectivity 5.0mm TERMI-BLOK Series Low Profile PCB Terminal Blocks with Interlock

TE’s ’TERMI-BLOK’ series is a low profile PCB mount terminal block with a 5mm centreline, side wire entry and M3 screw clamp terminals that accept a wire size range of 30 to 16 AWG(.05-1.3mm). These 5.0mm low profile PCB terminal blocks also have an interlocking feature. They’re made from a premium green polyamide 6.6 GF.

These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.

Features and Benefits:

•\tHigh quality build quality
•\tSmall and low profile design
•\tOperating temperature of -40°c to +110°c
•\tInterlocking feature
•\tCan be side stacked

These blocks have a ’M3’ screw.

RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL File no. E60677, CSA File no. LR7189

Approvals

UL (E60677); CSA (LR7189)

TE Connectivity 5.0mm TERMI-BLOK PCB Terminal Block Connectors

PCB Mount Terminal Block Technical Drawing
