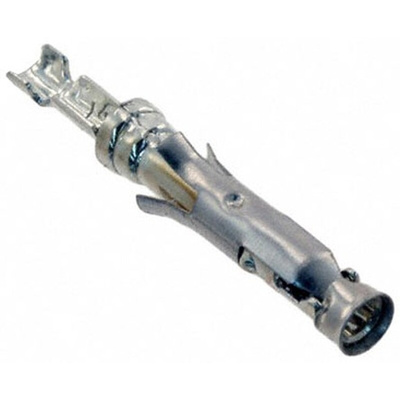

1-66109-7, TE Connectivity Type III+ Series Female Crimp Terminal, 26AWG Min, 24AWG Max, Контакты

Series 1 Contacts

A range of Series 1 Contacts for TE Connectivity connectors.

For 1·5 - 2·5mm² contacts use crimp tool stock no. 459-6252 and die set stock no. 452-6679
For all other contacts use tool stock no. 849-114 and die set stock no. 372-440
For a suitable Extraction Tool see stock number 162-5723

Precision formed Type III loose piece pin and socket contacts in size 16. Contacts feature a high normal force which provides a low resistance. Mating entry is closed-ended to prevent damage from stubbing due to misalignment.

TE Connectivity CPC Contacts & Tooling

Contacts and Tooling for Series 1, 2 and 3 of the CPC range of connectors.

Contact Crimp Socket 26-24AWG Multimate - Technical Drawing
