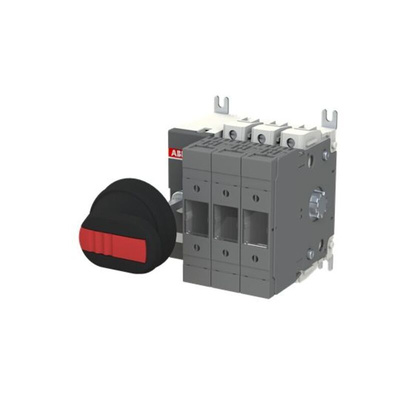

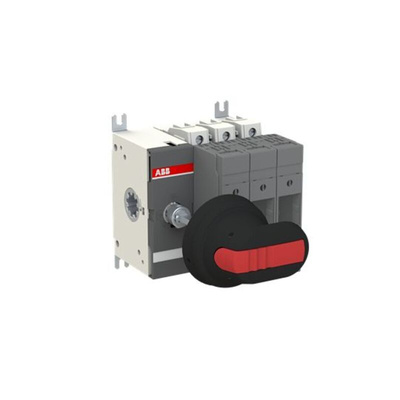

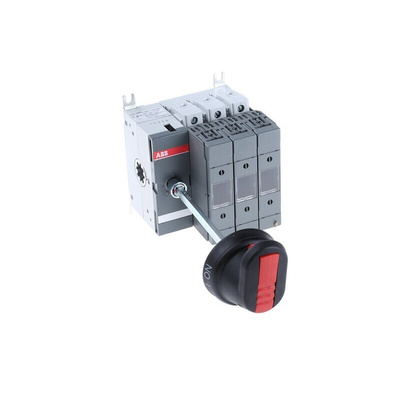

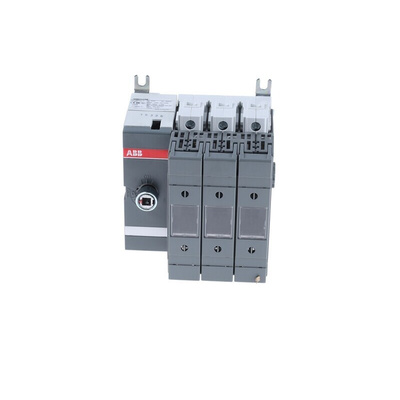

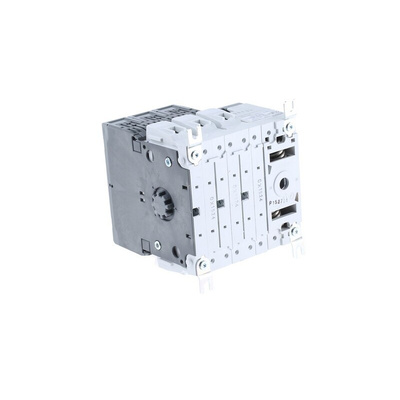

OS63GB03P 1SCA115235R1001, ABB Fuse Switch Disconnector, 3 Pole, 63A Max Current, 63A Fuse Current

ABB Fuse Switch Disconnector, 690V AC Voltage Rating, 7.5W Power Loss Per Pole - OS32 160 A Gamma Series - OS63GB03P 1SCA115235R1001

Cut the power to your system pronto with this fuse switch disconnector from ABB. It immediately cuts the flow of power through its linked circuits, isolating hardware to stop hazardous electrical loads during servicing tasks. It's a fused unit that trips in a flash if it receives dangerous overcurrent, driving down the risk of equipment damage. With a rated operational power of 55kW, it handles high-power loads and there's little chance of failure under abnormal conditions. Tampering is cut out of the equation, as the component's pistol handle can be securely padlocked to clamp down on unauthorised access.

• Handy screw terminals to keep fingers clear of conductors
• IP65-rated handle for full protection against dust and low-pressure water jets in demanding settings
• Handles surge currents up to 80kA for effective resistance to electrical faults
• On/off labels around handle collar, making for quick status checking

Applications

• Packing plants
• Automotive industry
• Cement processing

How do I mount this disconnector switch?

This product clips onto a standard DIN rail, so installation is quick and hassle-free.

ABB OS Range

A fused switch disconnector provides a cost effective means of short circuit protection, together with circuit isolation. The choice of fuse rating determines the level of protection, the maximum value is determined by the fused switch disconnector. These items have been tested in accordance with EN 60947-3.

Fuse Guide

Datasheet

LUL Certificate No. 2493

Datasheet -1SCA115235R1001
