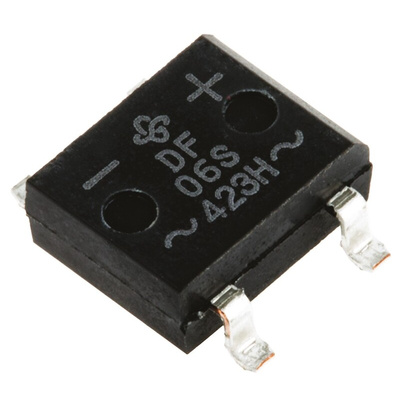

DF06S-E3/77, Vishay Bridge Rectifier, 1A, 600V, 4-Pin, Мостовой выпрямитель

Bridge Rectifiers for PCB Surface Mount, DFxxS Series, Vishay Semiconductor

High surge current capability
Low DC reverse current
Ideal for automated placement
Printed Circuit Board (PCB) reflow soldering

Approvals

UL file E54214

Bridge Rectifiers - Vishay Semiconductor

The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

DF005S, DF01S, DF02S, DF04S, DF06S, DF08S, DF10S, Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
