Vishay, TEMD5510FX01 Visible Light Si Photodiode, 65 °, Surface Mount SMD, Фотодиод

TEMD5510 Series Ambient Light Sensors

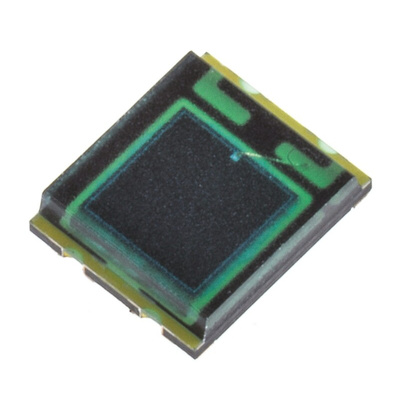

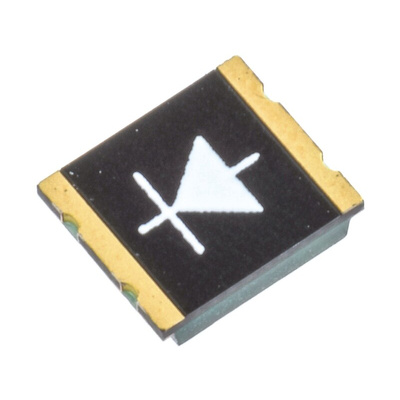

TEMD5510FX01 ambient light sensor is a PIN photodiode with high photo sensitivity in a miniature surface mount device (SMD). The detector chip has 7.5 mm2 sensitive area. It is sensitive to visible light much like the human eye and has peak sensitivity at 540 nm.

Features:

• Package type: surface mount
• Package form: top view
• Dimensions (L x W x H in mm): 5 x 4.24 x 1.12
• Radiant sensitive area (in mm2): 7.5
• AEC-Q101 qualified
• High photo sensitivity
• Adapted to human eye responsivity
• Supression filter for near infrared radiation
• Angle of half sensitivity: ϕ = ± 65°
• Floor life: 72 h, MSL 4, acc. J-STD-020
• Lead (Pb)-free reflow soldering

Applications:

• Automotive sensors
• Ambient light sensors
• Backlight dimmers
• Notebooks
• Computers
