RS PRO Counter, 5 Digit, Счетчик

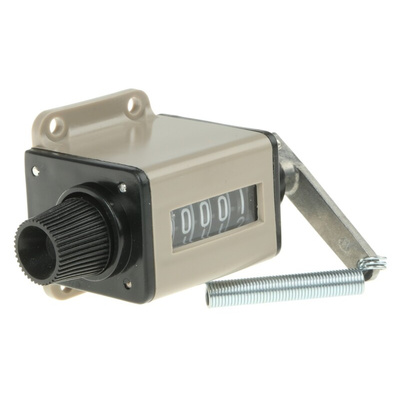

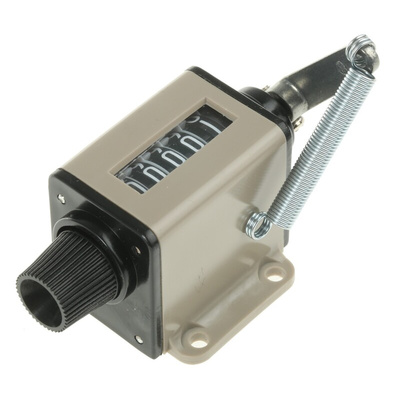

RS PRO Counter, 5 Digit Mechanical

Accurately keep track of how often an event has occurred using the mechanical five-digit counter from RS PRO. You can use this reliable mechanical device to make up to 1,000 counts per minute. This product is typically found in commercial settings such as live music venues, railway stations and motorways.

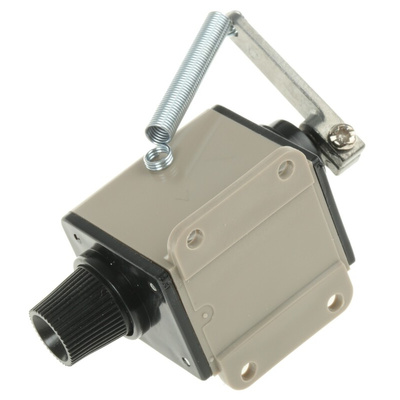

The adaptable unit comes with an attached stroke lever that rotates 360°, so you can easily move it to a convenient position. Designed for straightforward installation, you can speedily screw clamp it into place with a cut-out size of 37 mm. It can be manually reset, which means there's no need to buy a new device once it's reached its counting capacity. You'll be able to use this dependable device to count people, animals or vehicles.

Features and Benefits

• Count direction of up
• Impulses count mode
• Cutout height of 37 mm
• Cutout width of 21.5 mm
• Depth of 25 mm
• Digit height of 4.8 mm
• Mechanical display type
• Manual input type
• Mechanical meter type
• Screw clamp mounting type
• Five digits
• Manual reset method
• Shaft speed maximum of 1000 count/min
