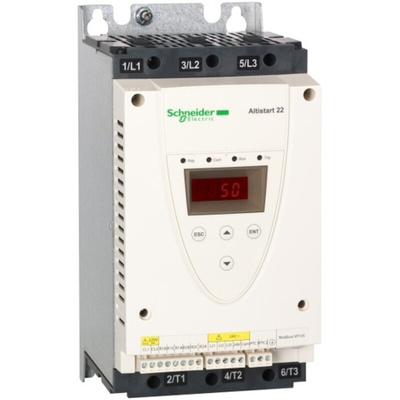

ATS22D32Q, Schneider Electric Soft Starter, Soft Start, 15 kW, 440 V ac, 3 Phase, IP20, Устройство плавного пуска

Schneider Electric Soft Starter, 32A Current Rating, 440V AC Voltage Rating - ATS22 Series - ATS22D32Q

Are you looking for a solid-state power device to protect your motor during startups? Opt for this 3-phase soft starter from Schneider Electric. It safeguards attached machinery by reducing the motor's surge and torque, supporting a gradual and controlled pick up in speed instead. Thanks to its thermal protection, this unit is able to cut the voltage supply to the motor when it detects overheating. It comes with an easy-to-read LED display and navigation button for the simple configuration of operational parameters. Thanks to a maximum input of 440V AC, this device is suitable for use in industrial applications that draw high voltage.

Features & Benefits

• IP20 rating indicates the unit is touch-proof and resistant to dust or objects over 12mm
• Maximum power rating of 15kW for energy efficiency
• PTC input for temperature sensing of the motor

Applications

• Dust collector units
• Water supply applications
• Conveyor systems

What size is this soft starter?

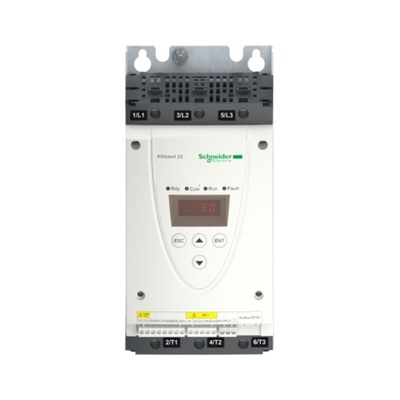

This soft starter has dimensions of 209 (length) x 130 (width) x 265 (depth), so it's a compact choice that won't use much room in your setup.

Altistart ATS 22 Data Sheet

Catalogue - Soft Start/Soft Stop Units

Datasheet - ATS22D32Q

Instruction Sheet - ATS22D32Q

Product Environmental Profile
