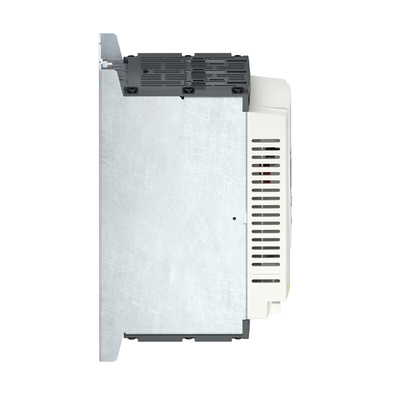

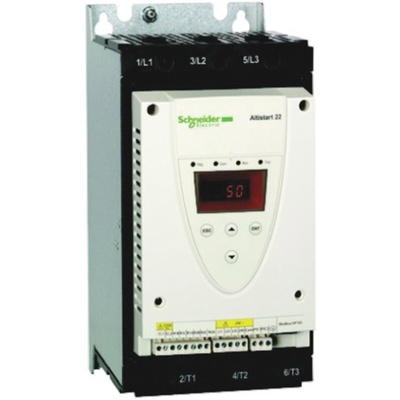

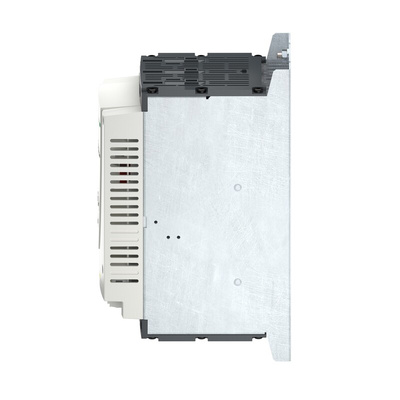

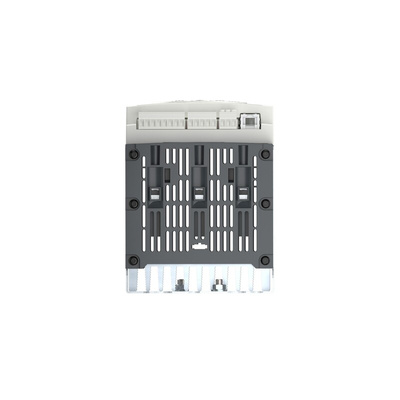

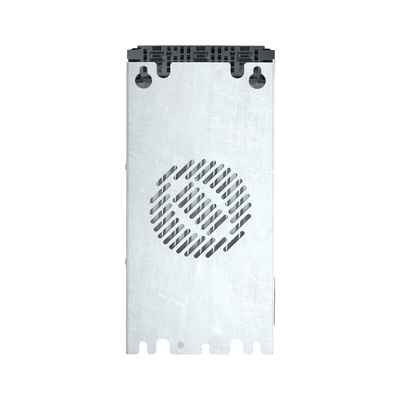

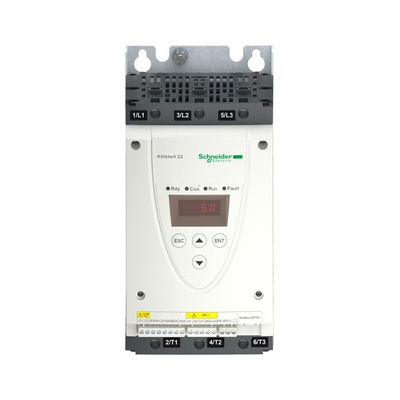

ATS22D47Q, Schneider Electric Soft Starter, Soft Start, 22 kW, 440 V ac, 3 Phase, IP20, Устройство плавного пуска

Schneider Electric 3-Phase Soft Starter, 22kW Power Rating, 440V AC Voltage Rating - ATS22 Series - ATS22D47Q

For safe actuation of your electric motors, choose this soft starter from Schneider Electric's Altistart 22 range. This device controls the inrush current needed to start your 3-phase motors, allowing them to ramp up gradually and prevent jolts, vibrations and potential damage. Thanks to a 47A current rating, it's suitable for use in high-current applications. To efficiently regulate heat, this soft starter comes with a heat sink included and you can connect it to a fan for enhanced cooling.

Features & Benefits

• Operating temperature range of -10°C to +40°C for use in challenging conditions
• Low power loss of 48W for energy efficiency
• Modbus serial port for effective communication with other devices
• Sound intensity of 45dB, approximately equivalent to a domestic fridge, for safe working noise levels

Applications

• Centrifugal pumps
• Medical equipment
• Process and packaging industries

What precautions should I take when mounting this soft starter?

When mounting this soft starter, it's important to ensure it's in a well-ventilated position and not placed close to heating elements. Stacking also leads to overheating so this should be avoided too.

Datasheet

7106388_Datasheet_en

Product Environmental Profile
