ATS22D75Q, Schneider Electric Soft Starter, Soft Start, 37 kW, 3 Phase, IP20, Устройство плавного пуска

Altistart ATS 22

The ATS22 is a simple to use, three phase digital softstart with embedded bypass function for a wide range of applications.,Complete with adjustable electronic overload and fieldbus communications.

Compact size
Simple connection
Easy to commission
Built-in bypass
3 programmable logic inputs
1 PTC input
2 relay outputs
Motor thermal protection
Overvoltage protection

Schneider Electric Soft Starter, AC-53A Utilisation Category, 37kW Power Rating - ATS 22 Series - ATS22D75Q

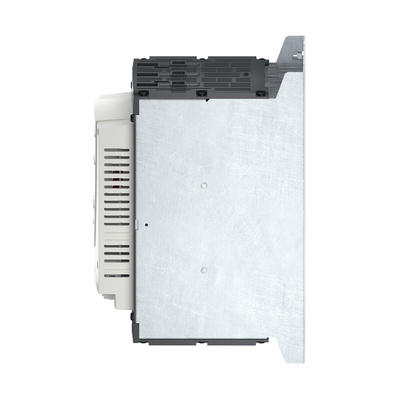

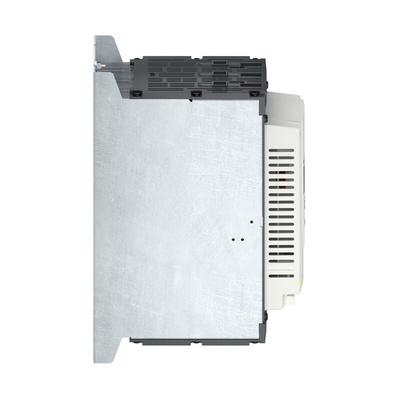

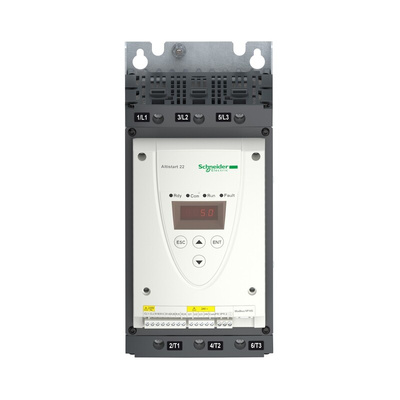

Looking for a reliable way to get your motor running? This soft starter from Schneider Electric does the trick. It's a 3-phase device that takes inputs from 230 to 440V and delivers 440V AC to your asynchronous motor. Built-in torque control limits the stress on your equipment during startup and protects it from wear and tear. Thanks to its slim size of 295 (H) x 145 (W) x 207mm (D), it's a space-saver that fits easily into busy electrical setups. To make sure everything runs cool, the assembly includes a built-in heat sink.

• IP20 rating indicates it's touch-proof and protected against objects bigger than 12mm, such as tools, wires and screws
• Broad operating temperature range between -10°C and +40°C for safe operation in harsh settings
• RJ45 connector type to support serial communication

Applications

• HVAC systems
• Centrifugal and piston pumps
• Material handling equipment

Can I use this unit in humid environments?

As this soft starter handles an operating humidity of up to 95% RH, you can use it safely in areas with high levels of non-condensing water vapour.

Altistart ATS 22 Data Sheet

ATS22D75Q Soft Starter Data Sheet

Datasheet

Product Environmental Profile

Catalogue - Altistart 22

Instruction Sheet - ATS22D75Q
