ATS22C17Q, Schneider Electric Soft Starter, Soft Start, 90 kW, 440 V ac, 3 Phase, IP00, Устройство плавного пуска

Schneider Electric 3-Phase Soft Starter, 90kW Power Rating, 440V AC Voltage Rating - ATS22 Series - ATS22C17Q

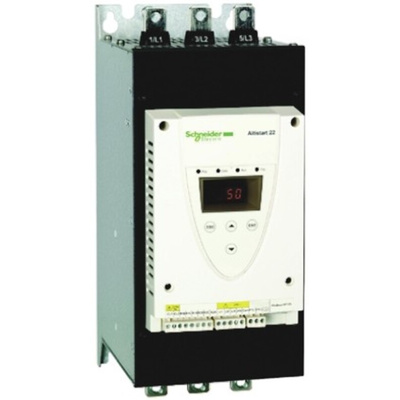

Use this soft starter from Schneider Electric to safely power up your heavy-duty industrial motors. It uses solid-state switches to reduce the electrical surge that comes with motor startup, preventing overloads and keeping your equipment working for longer. It produces a noise level of 56dB, which is roughly equivalent to a normal conversation, to protect workplace comfort. Its current rating of 170A makes it ideal for use with devices, such as wind turbines, that have high current consumption.

Features & Benefits

• Comes with an integrated mounting plate for easy installation
• Resistant to up to 15gn of mechanical shock for 11ms for stability in harsh conditions
• Wide operating temperature range of -10°C to +40°C for use in demanding settings
• Integrated phase-failure protection for enhanced electrical safety

Applications

• Hydro-electric power plants
• Automotive industry

Is this soft starter waterproof?

No – this soft starter has an IP00 rating, which means it's not protected against dust or water. You must keep it away from sources of moisture.

What are the dimensions of this soft starter?

The soft starter has dimensions of 356 (height) x 150 (width) x 229.5mm (width).

Altistart ATS 22 Data Sheet

Product Environmental Profile
