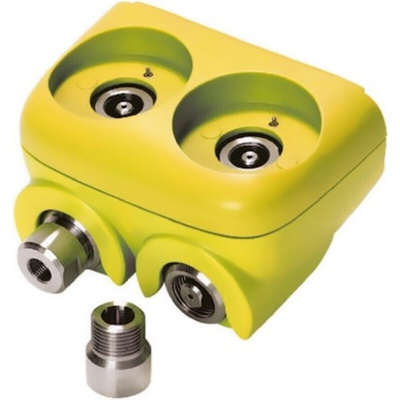

Druck MC620-IS Pressure Module, For Use With DPI 620 Series

Druck Intrinsically Safe Advanced Modular Calibration System

Providing multi-functionality is just one of the many great features of Druck’s intrinsically safe, advanced modular calibration system. Each one of the 4 basic components performs duties that previously required a multitude of different systems. Some components of the system that we have available are:
•PV621-IS (710-9025) - Pressure Generating Station
•DPI 620-IS (710-9016) - Advanced Modular Calibrator
•IPM620-IS (710-9047) - Interchangeable Pressure Module
•MC620-IS (710-9031) - Pressure Module Carrier

Features & Benefits

• Multifunction capabilities, electrical frequency, temperature and pressure
• Complete HART communicator included
• Optional Fieldbus communicator
• Modular re-arrangeable and expandable concept
• Each individual component can be used as a stand-alone instrument
• Allows significant inventory reductions
• Improves operator safety and simplifies training
• Reduces cost ownership
• Provides simultaneous measurement and source capabilities for the set-up, testing and calibration of most types of process instruments. (Transmitters, transducers, gauges/indicators, switched, proximity detectors, counters, RTDs, thermocouple, and valve positioners
• ATEX and IEC approved

The DPI 620-IS series combines an advanced multi-function calibrator and HART/Fieldbus communicator with world-class pressure measurement generation, now available with a new and improved design:

• Smartphone technology, touch display and UI (user interface) which helps support gestures and swipes with a flatter menu structure
• A new digital platform and modems which support HART and Fieldbus applications
• A new dashboard, allowing a user to promptly launch applications
• The new TASK menu allows for single touch configuration, useful for common devices such as pressure and temperature transmitters, transducers, switches and valve positioners

Did you know?

The "IS" in the name of the multifunction calibrator stands for intrinsically safe, if an item is intrinsically safe it means that it is incapable of releasing sufficient electrical and thermal energy under normal or abnormal conditions. This results in the item not being able to cause ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration.

What comes with the kit?

Please note that the contents of the kit is based on the module that you acquire and will vary, the below contents come with the any of the series modules as standard.

• Probe
• Test leads
• Calibration certificate
• Quick reference guide
