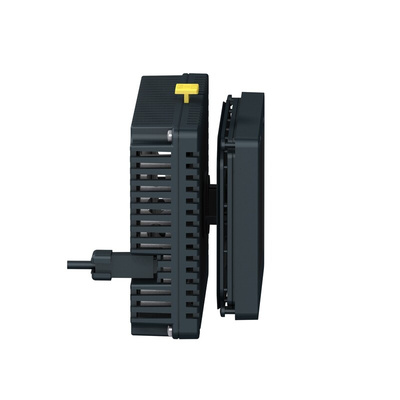

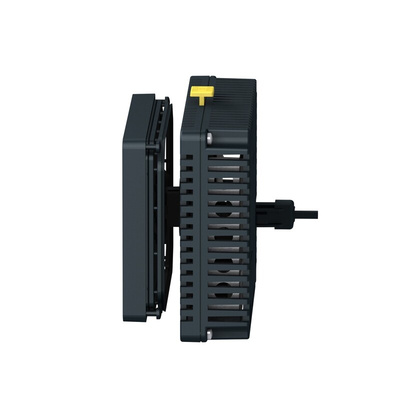

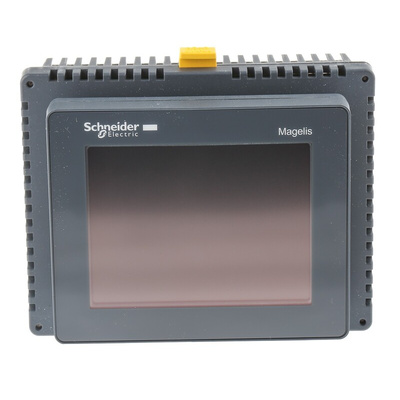

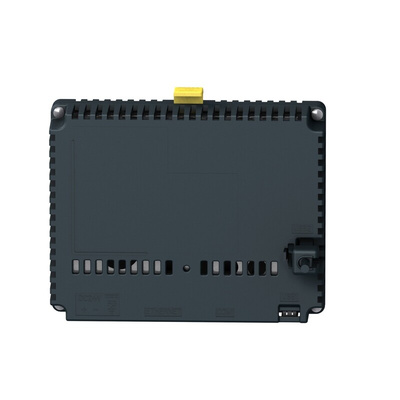

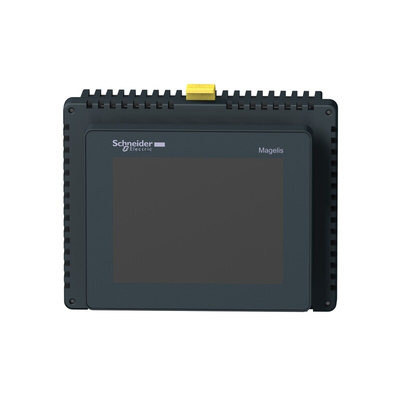

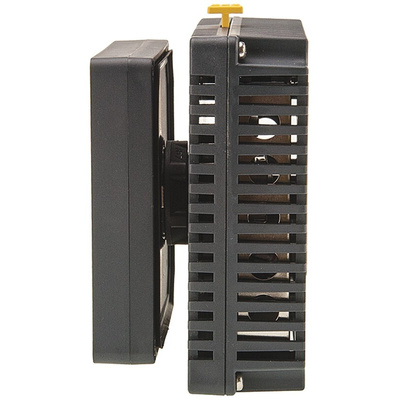

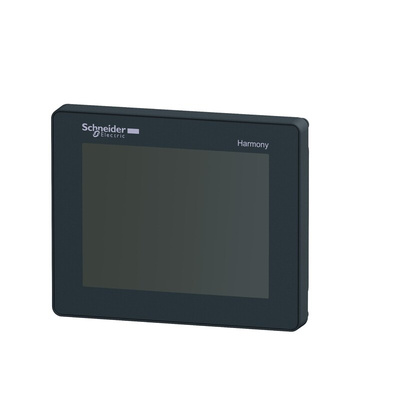

HMISTU655, Schneider Electric STU Series Harmony STU Touch Screen HMI - 3.5 in, TFT LCD Display, 320 x 240pixels, Дисплей

Schneider Electric Magelis STO & STU HMI Touch Panel - HMISTU

Schneider Electric Magelis STO & STU HMI touch panels are the end result of innovative engineering, representing the key to total integrated automation. performing HMI tasks (human-machine interface) of higher complexities is the main function of the module. Providing users with the ultimate convenience and automation solution for a multitude of applications.

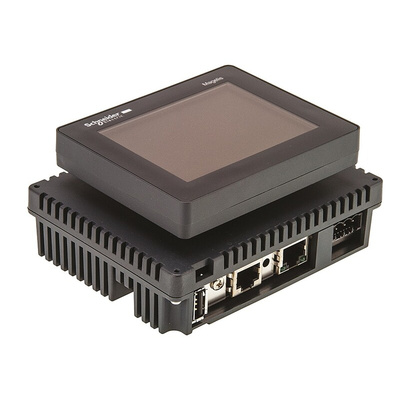

Thanks to its “pushbutton” style mounting system, Magelis STU fits anywhere on machines or enclosures. In addition to the standard RJ45 serial link, the Magelis STU also features an embedded Ethernet connection for quicker, more extensive communication (via Modbus TCP, Ethernet IP and Profinet protocols for example) offering more services (such as Web Gate and e-mail).

Features & Benefits

• High definition colour screen TFT QVGA 3.5’’


• 3.5" QVGA resolution, 65K colours, touch screen graphic terminal, configured by Vijeo Designer


• Resolution: 200 x 80 pixels


• No tools are required to install Magelis STO and STU panels.


• Compact, they can be mounted directly on the machine frame or in an enclosure.

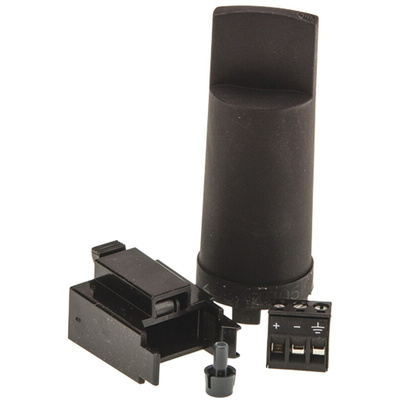

• After spring clip technology, the 22" diameter “pushbutton” mounting system which eliminates the enclosure cut-out


• No batteries required, backlit by an LED


• Removable power connector


• USB memory stick for application downloads


• Remote control with the Web Gate function


• The design offers ease of use and configuration with a single software program all contribute to making this range an innovative, economical and powerful

Schneider Electric STU Series Touch Screen HMI, 320 x 240 pixels Display Resolution, 24VDC Supply Voltage - HMISTU655

This advanced touch screen HMI is designed to enhance productivity in automation and electronics industries. With features like a colour TFT LCD display and a powerful RISC ARM9 processor, this device provides a user friendly interface for efficient operation. The IP20 & IP65 rating ensures durability, making it suitable for various environments.

Features & Benefits

• Vivid colour TFT LCD display for clear visuals
• IP20 & IP65 rating for protection in diverse settings
• RISC ARM9 processor for fast and reliable performance
• 3.5 inch screen with 320 x 240 resolution for precise display
• 24V dc supply voltage for consistent power
• USB 2.0 port for easy connectivity to other devices

Applications

• Used for machine manufacturing solutions in industrial and infrastructure sectors
• Ideal for automation processes in the electronics industry
• Suitable for controlling equipment in the mechanical field

Can it be used for machine manufacturing solutions in various industries?

Yes, the touch screen HMI is versatile and ideal for automation in different sectors.

Will it provide a clear display with the colour TFT LCD screen?

Yes, the vibrant display ensures clear visuals for effective monitoring.

Is it easy to connect to other devices with the USB 2.0 port?

Yes, the USB port allows seamless connectivity for enhanced functionality.

Schneider Electric Magelis STO-STU

The new Magelis STO and STU boost the Magelis Small Panels range: more flexibility, more communication, easy and fast revolutionary mounting system. Powered by Vijeo Designer, they bring a cost-effective solution, especially to the machine builders.

Magelis STU 3.5” Data Sheet

Magelis STO & Magelis STU Graphic terminals with touch screen display Data Sheet

Product Environmental Profile

Catalogue - Harmony STO and STU Series

Manual - Harmony HMISTU655/855 Series

Instruction Sheet - HMISTU Series
