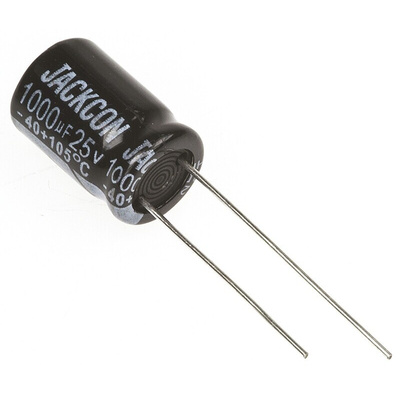

RS PRO 1000μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole, Конденсатор

RS PRO 1000 μF Electrolytic Capacitor 25 V DC, Through Hole

Use this electrolytic capacitor from RS PRO to prevent voltage ripple in switching power supplies and filtering devices. When used in connection with coupling and decoupling applications, it suppresses undesirable noise generated within the circuit to help protect the power source.


The capacitor generates electrostatic fields to store electrical energy. Its safety vent construction ensures that gas is released, which stops the capacitor from exploding in case of over-voltage. It's a through-hole type component, meaning you can use the holes in your printed circuit board (PCB) to mount it.


This aluminium capacitor is a radial-type component, which means that both leads come out of the same side. It's a general-purpose component that's suitable for a wide range of applications, including communication equipment and storing power in flash lamps.

Features and Benefits

• Capacitance of 1000 μF


• Diameter of 10 mm


• Height of 15 mm


• Length of 15 mm


• Dissipation factor of 14%


• Lead pitch of 5 mm


• Coefficient variance (CV) of less than or equal to 0.01 or 3 μA at 1 min leakage current


• Lifetime of 2000 h


• Operating temperature range of -40°C to +105°C


• Through-hole mounting type


• Ripple current of 740 mA


• Electrolytic technology


• Tolerance of ±20%


• Voltage of 25 V DC

RS Pro Datasheet
