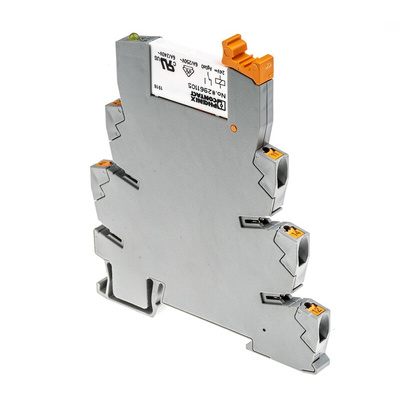

2900299, Phoenix Contact PLC-RPT-24DC/21 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

Phoenix PLC-RPT Series Push In Contact

The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

Features and Benefits

• With the use of a v8 adapter, this relay module offers efficient connection to system cabling


• The module offers safe isolation between the coil and contact


• Functional plug-in bridges


• Operating temperature range of -40 ºC to 60 ºC

What is a relay module used for?

A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.

Phoenix Contact Interface Relay Module, SPDT - PLC-RPT-24DC/21 - 2900299

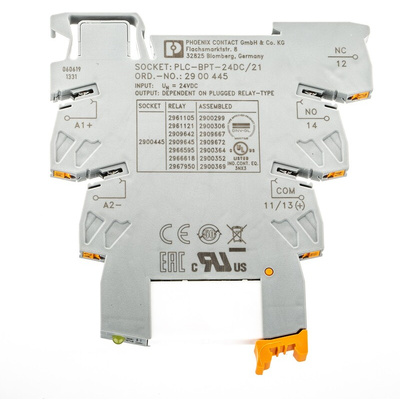

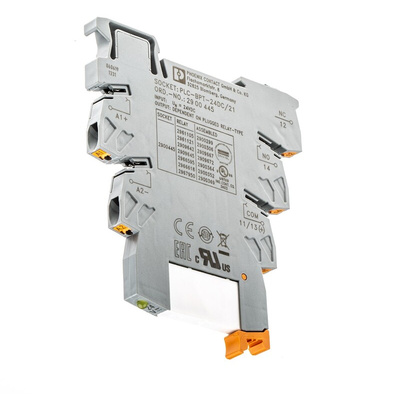

When you need to transmit a signal between isolated components in your circuitry, this Phoenix Contact relay module is an effective solution. It consists of a terminal block and a miniature relay with a plug-in contact.

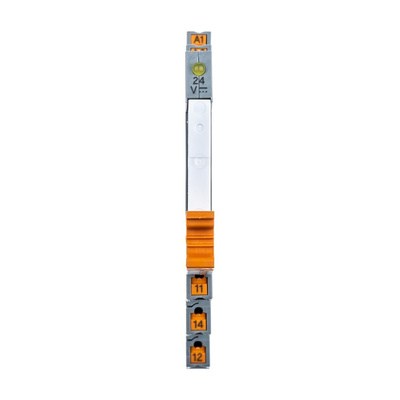

The product is suitable for use with industry-standard DIN rails, for compatibility with your existing equipment and fittings. Its slim design saves space on your printed circuit boards (PCBs), so you can organise your set-up efficiently, and it's a push-in terminal type, for simple installation. A yellow LED (light-emitting diode) indicator is on hand to notify you of its output status, meaning inspection and maintenance are simplified.
This module is ideal for switching circuits on and off to protect your equipment against power surges. You can use it as a safety device in power grids and industrial manufacturing machinery.

Features and Benefits

• Coil voltage of 24 V DC
• SPDT (single pole, double throw) contact configuration
• Dimensions of 94 (length) x 80 (height) x 6.2 mm (depth)
• Minimum operating temperature of -40°C
• Maximum operating temperature of +60°C
• DIN rail mounting type
• Switching current of 10 A
• Input current of 9 mA

Note

Separating plate PLC-ATP must be installed for voltages larger than 250V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carries out with FBST 8-PLC.. or FBST 500..

2900299 Datasheet

Installation Guide

EU Conformity

UK Conformity
