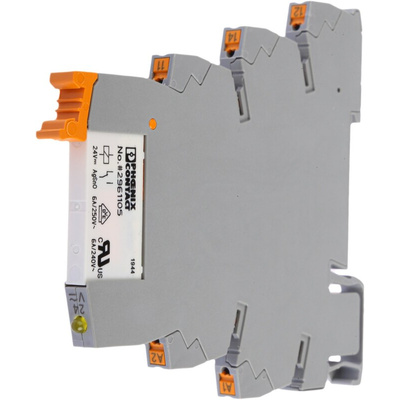

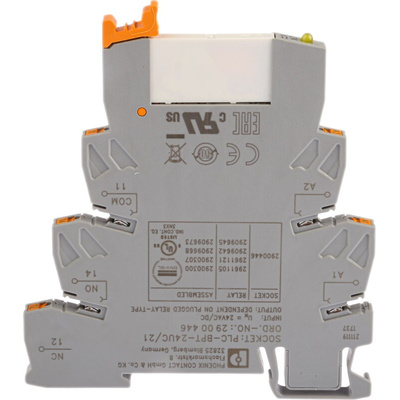

2900300, Phoenix Contact PLC-RPT- 24UC/21 Series , 24V ac/dc SPDT Interface Relay Module, Surface Mount Terminal , DIN Rail

Phoenix Contact Surface Mount PLC-RPT Series

The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

Features and Benefits

• With the use of a v8 adapter, this relay module offers efficient connection to system cabling


• The module offers safe isolation between the coil and contact


• Functional plug-in bridges


• Operating temperature range of -40 ºC to 60 ºC


• Fast plug-in connection of the PLC and other peripherals


• Gold-plated AgSnO terminals available


• Solid State versions available

What is a relay module used for?

A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.

Phoenix Contact PLC-RPT- 24UC/21 2900300

• The product features a slim design and a yellow LED operating voltage display


• The relay benefits from an integrated input circuit and interference coil and contact


• RT III sealed relay degree of protection


• Input voltage of 24 V DC

PLC-RPT- 24UC/21 Datasheet
