2900304, Phoenix Contact PLC-RPT-120UC/21 Series Interface Relay, DIN Rail Mount, 110V ac/dc Coil, SPDT, 1-Pole

Phoenix Contact Interface Relay, Single Pole, 10,000,000 Cycles - PLC-RPT-120UC/21 - 2900304

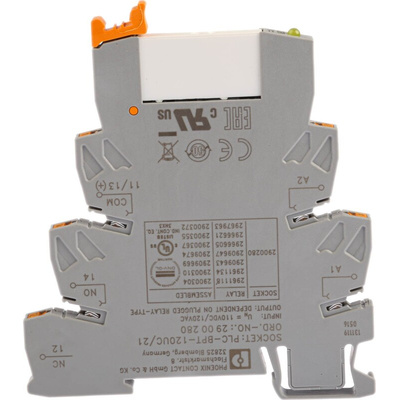

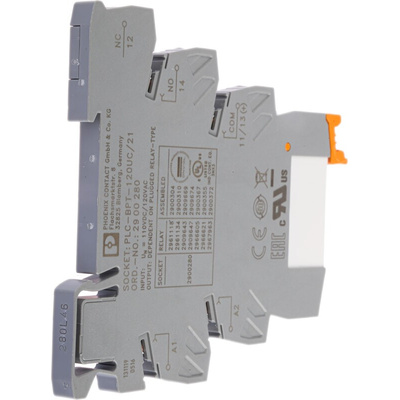

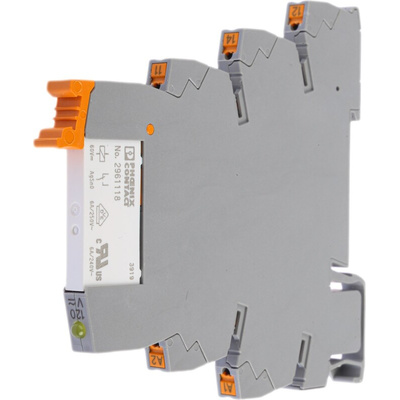

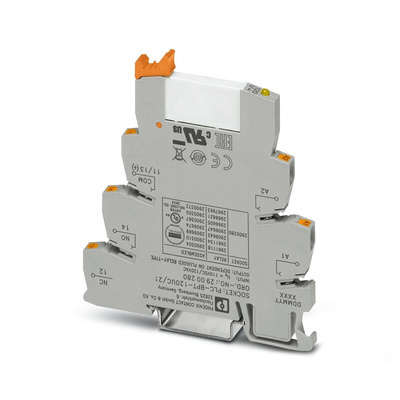

Need a safe way to transmit signals between isolated components in your machinery? Choose this interface relay from Phoenix Contact. It adjusts the algorithm of the digital signal from the sending unit to ensure it's compatible with the receiving system. The component is a complete assembly, consisting of a terminal block relay base and a plug-in miniature relay. Thanks to the response time of 6ms and release time of 15ms, you can rely on it for rapid operation in your automated systems.
A built-in yellow LED displays the unit's operating status so you can easily monitor it. The broad operating temperature range between -40°C and +60°C means it's safe to use in challenging environments. Mounting this component is easy – simply clip it to a DIN rail. For flexibility, you can mount it in any position. You'll find relays like this in everything from medical devices to equipment in power stations.

Features & Benefits

• Flammability rating of UL 94 V0 means burning will stop in 10 seconds
• Complies with IEC 60664 standards for maintaining insulation coordination in low-voltage systems
• Push-in connection for ease of setup
• Mechanical service life of 10,000,000 cycles for long-term operation

PLC-RPIT-120UC/21 Data Sheet

Line Drawing - 2900304
