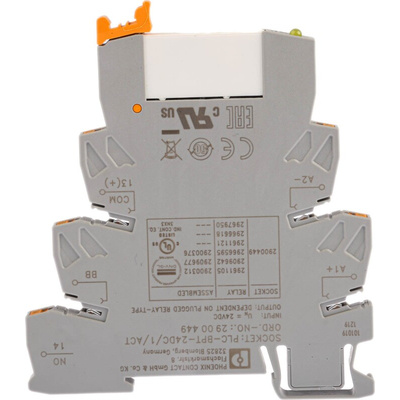

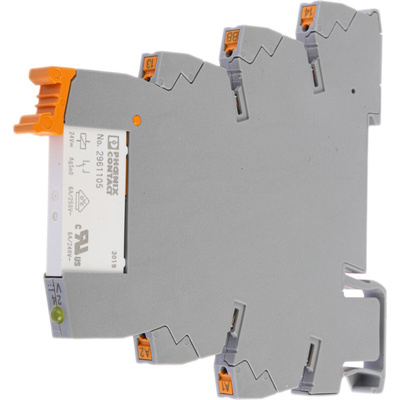

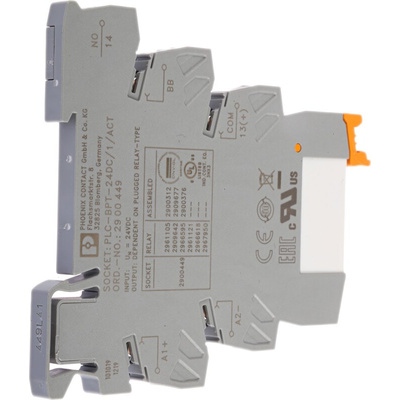

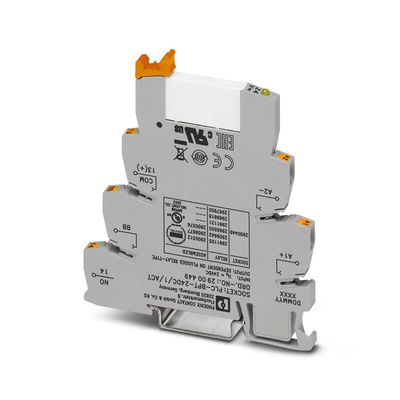

2900312, Phoenix Contact PLC-RPT- 24DC/ 1/ACT Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPST, 1-Pole

Phoenix Contact Interface Relay, Push In, 5ms Response Time - PLC-RPT- 24DC/ 1/ACT - 2900312

For the safe transmission of operating signals between isolated industrial systems, turn to this interface relay from Phoenix Contact. It's made up of a miniature relay plugged into a terminal block relay base, eliminating the need for an external terminal block. Thanks to the push-in connection of the relay base, you can easily set up your conductors in it without complex tools. Integrated reverse polarity protection helps prevent electric hazards in case you plug it incorrectly.
This unit has a response time of 5ms and a release time of 8ms, so you can rely on it in operations that need fast transmission. It features an integrated LED signal that shows its operating voltage status so you can easily monitor it. A mechanical service life of 10,000,000 cycles means you can use the relay for a long time. You'll find it regulating sensitive power-generation equipment and X-ray machines.

Features & Benefits

• Operating temperature range between -40°C and +60°C to withstand harsh settings
• Silver alloy contact is corrosion-resistant for lasting use
• Flammability rating of UL 94 V0 to stop the spread of fire
• Can be mounted in any position for design flexibility
