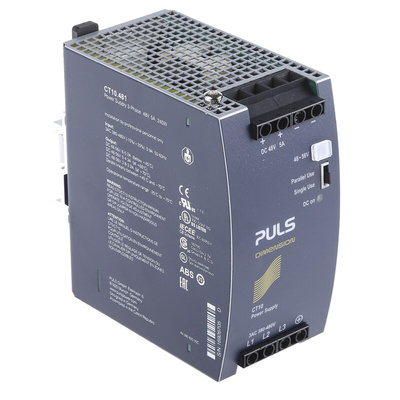

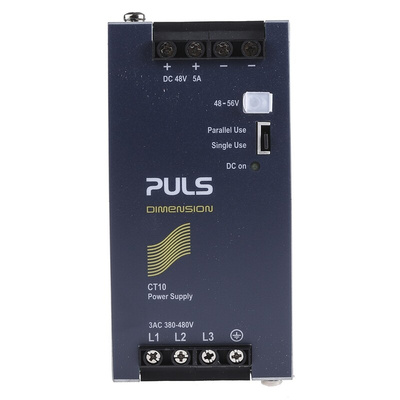

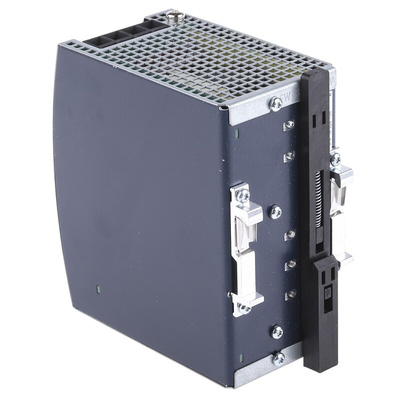

CT10.481, PULS DIMENSION C-Line Switch Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 48V dc dc Output, 5A Output,, Блок питания

Dimension C-Series - Puls Power Supplies

The C-Series DIN Rail power supplies are affordable basic units which offer an alternative to the feature-rich Q-Series. The same standards apply to the C-Series Puls power supplies as to all other PULS products in terms of quality. They are reliable, easy to operate, have a small overall size and generous power reserves. In the 120W class, the C-Series power supplies are even smaller than the Q Series and yet are every bit as durable. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. The guaranteed power boost of +20% of the rated power is intended to ensure optimal adaptation to fluctuating loads. If the ambient temperature remains below 45°C or with forced ventilation, this performance is even specified for continuous loads. The units are equipped with automatic 115/230 V range switching for increased ease of operation and fault avoidance.
The units are available in special regional versions that cover either the 100 V to 120 V or 200 V to 240 V ranges. The C series Puls power supply supports regional applications and offers extra cost savings without sacrificing functionality.

Features and Benefits

•Wide range auto select input
•Minimal inrush current
•20% Power reserves up to 45°C continuously allowed
•Large screw terminals
•CS10.242 has power factor correction to EN61000-3-2
•DC-ok LED
•Cost effective

Note

Power de-rating @ +60 to +70°C.

Standards

UL60950-1, UL508, IEC60950-1

Approvals

UL Listed

Standards

IEC, UL, EN, SELV

Datasheet
