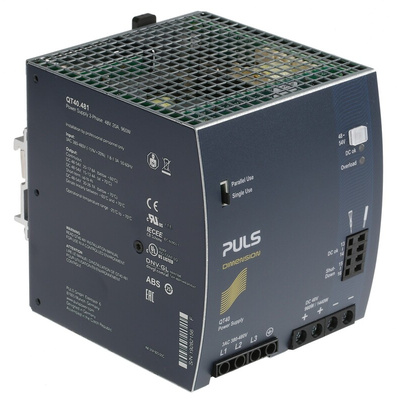

QT40.481, PULS DIMENSION Q Switch Mode DIN Rail Panel Mount Power Supply 323 → 576 V ac, 450 → 800 V dc Input, Блок питания

PULS DIN Rail Power Supply

The PULS Dimension Q series 3-phase DIN-rail switch-mode power supply has an adjustable output voltage rating ranging between 48VDC and 54VDC with 20A and 30A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high performance. It is equipped with single-phase input voltage ranging between 380VAC and 480VAC. This power supplies diagnostic is easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED. High immunity to transients and power surges as well as low electromagnetic emission make it suitable to use in nearly every environmental condition.

Features and Benefits

Light and compact
Easy to install
Screw terminals
Efficiency is up to 95.4%
Power rating is 960W
Ripple factor and noise is 150mVpp
Negligible low inrush current surge
Active power factor correction (PFC)
Active filtering of input transients
Operation temperature ranges between -25°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

IEC
UL approved
EN
CE certified
SELV
GL
